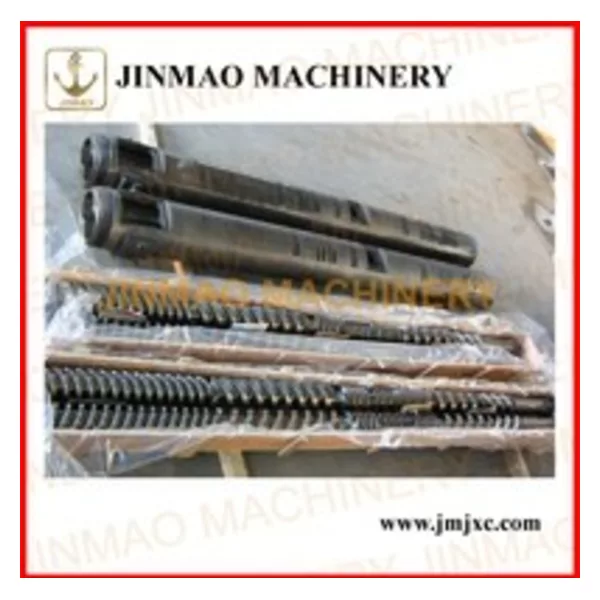

Parallel twin screw and barrel

Parallel twin screw and barrel

Specification:

Φ45/2, Φ60/2, Φ65/2, Φ70/2, Φ72/2, Φ75/2, Φ80/2, Φ85/2, Φ90/2, Φ93/2, Φ100/2, Φ105/2, Φ110/2, Φ115/2, Φ120/2, Φ125/2, Φ130/2, Φ140/2, Φ150/2, Φ160/2, Φ170/2, Φ180/2, Φ190/2, Φ200/2, Φ250/2

Length-diameter ratio: L/D = 16-35

Above are our standard specification, we also can customize for you.

Screw structure and compression ratio can be designed according to different products and raw material.

Base Materials:

1)38CrMoAlA(JIS SACM 645)

2)42CrMo(AISI 4140)

3)Cr12MoV(JIS SKD-11)

4)4Cr5MoSiV1(JIS SKD-61)

5)9Cr18MoV

6)DC53 (JIS G4404)

Bimetallic Alloy Materials:

1)Fe-based alloy

2)Ni-based alloy

3)Co-based alloy

4)NiCo-based alloy

5)Wolfram carbide

Bimetallic alloy level:

Alloy powder including 40% Wolfram Carbon

Alloy powder including 25% Wolfram Carbon

Alloy powder including 9.5% Wolfram Carbon

Processing Technology:

Heat treatment

High-frequency quenching

Nitriding treatment

Hard-chrome electroplating

Bimetallic alloy welding

Technical Parameter:

Nitrided layer depth:0.50-0.80mm

Nitrided hardness: 950-1100HV

Nitrided brittleness: Less than 2 level

Surface roughness: Ra 0.4μm

Linearity of screw: 0.015mm/m

Hard-chrome plating hardness after nitriding: ≥950HV

Chrome-plating layer depth: 0.025~0.10mm

Bimetallic layer depth: 3-5 mm

Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO, AMUT model spares.

We can manufacture all types of screws and barrels according to clients’ requirement.
