Specifications

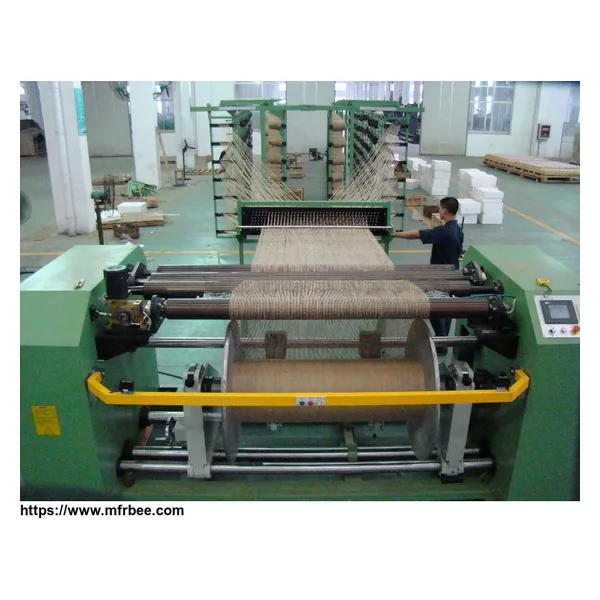

HFGA126 jute warping machine is a preparatory machine for jute yarn. Draw yarn from yarn packages to the loom beam.
1. Application
1.1 This machine is applied to draw yarn from yarn packages, arranges the stands
parallel in a prescribed sequence, and winds them on loom beam for use in Looms.
1.2 Different winding density can be reached by setting different winding speed,
pressure according to different requirement.
2.Main structure and technical data
2.1 Beam dia.: Ï910mm
2.2 Working width: 800mm ~1270mm (customizable)
2.3 Warping speed: 0~100m/min
2.4 Cone positions: (optional)
2.5 Driving form: Driven by motor after two steps of gear reduction
2.6 Brake distance: â¤1m (100m/min)
2.7 Steel reed: movable left and right (by manual)
2.8 Beam loading and doffing: Support arms pulled by pneumatic cylinder
2.9 Operation display: 6â LCD touch screen
2.10 Warp stop motion: photoelectric auto-stop
2.12 Full length auto-stop: micro-computer control
2.13 Total installed power: 3.37Kw
2.14 Weight: about 2000Kgs
3. Optional parts and parts supplied by the end user
3.1 Ducts/pipes outside of machine
3.2 Compressed air
3.3 Loom beams
