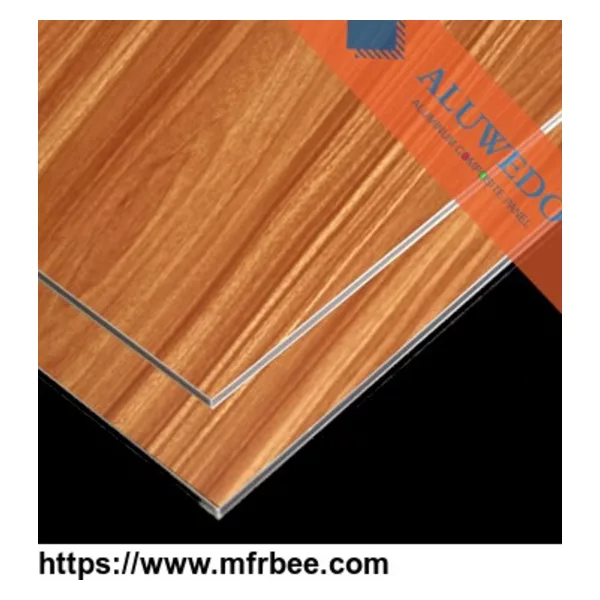

Aluwedo® aluminum composite panels possess the characteristic as the light weight and the high
rigidity inmachinery Industry, Due to the lightweight construction, the CO2 emission can be reduced and at the same time,
there is less burden on the congested and restricted rail and road networks.Aluwedo® is recyclable, the panels are fed back into the material cycle
and used for producing new material. Aluwedo® aluminum composite panels is anti-scratch and anti-static
electricity.
Aluwedo® composite panels are ideal for machine out design, as the instead materials of steel plate, pure aluminum sheets and the stainless
steel sheets.
Advantages:
⢠low weight
⢠excellent flatness and high flexural strength
⢠versatile processing options using routing and folding techniques
⢠large variety of panel formats from very large to very small
â¢High gloss finish over than 95% degree
⢠easy clean surface
⢠Resistance to fungus, moss, decay and weathering light and UV
⢠extreme durability
⢠complete recyclable
Raw Material
High strength aluminum alloy A1100
LDPEcore
Surface coating:PEcoating,
Dupont Adhesive film
Panel Specifications and Dimension
Thickness:2-8mm, Recommended:3mm
Width: 1000-2000mm, Recommended: 1220mm, 1250mm, 1500mm, 2000mm
Panel length: up to 5800mm or others as required
Aluminum thickness: 0.21~0.5mm
*Custom width and length available upon request subject to minimum quantities
Testing Item | Standard | Result |
Unit Weight | ASTM D792 | T 3mm=4kg/m2 |
Thermal Expansion | ASTM D696 | 24-28 |
Thermal Deformation Temperature | ASTM D648 | 115â |
Thermal Conduction | ASTM D976 | 0.102kcal/m.hrâ |
Flexural Rigidity | ASTM D393 | 14.0*10^5 |
Impact Resistance | ASTM D732 | 1.64kgf |
Adhesive Strangth | ASTM D903 | 0.77kg/mm |
Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
Fire Propagation | ASTM E84 | Qualified |
Wind-Pressure Resistant | ASTM E330 | Passed |
Properties Against Water | ASTM E331 | Passed |
