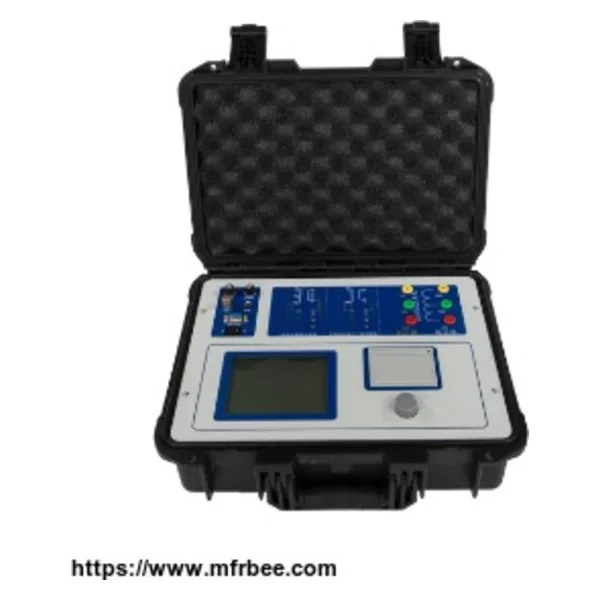

Transformer Ratio Tester
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- 1pcs each box
- Delivery
- 15 Days
Specifications
1. Transformer Ratio Tester, The internal integrated amplitude of the instrument is stable and adjustable, the phase is constant, and the output current is large.
2. The device can be used for testing various transformers, current transformers and voltage transformers, and is especially suitable for the test of the Z type winding transformer, the rectifier transformer and the balance transformer.
3. The test precision is high, and the instrument adopts 16 bit high precision AD converter and DSP (digital signal processing) chip, which can ensure the accuracy of the measurement and the ability of anti disturbance.
4. Measurement speed, a set of data test need a few seconds, in the multi - test process of the transformer only need set once the parameters can be completed all the sub - test, greatly improve the efficiency of work.
5. According to the test sample, the instrument can automatically adjust the range, and according to the excitation current of the sample the output power can be adjusted automatically.
6. The interior has a thermal protection, with automatic check wiring function.
Product Parameters
| Environment condition: | Temperature: -5 °C~50 °C |
| Relative humidity | ＜95%(25°C) |
| Altitude | ＜2500mm |
| External interference: no special strong vibration, no special strong electromagnetic field | |
| Power supply | 160VAC-280VAC,45Hz~55Hz |
| Output range | 20V gear: Voltage0~20V Current 0~10V |
| 50V gear: Voltage0!50V Current0~5A | |
| The ratio test range | 1~4000 |
| Group test range | 0~11 |
| Angle measurement range | 0°~ 360° or - 180°~ 180° |
