HWS-600TM Diamond Wall Saw

Place Of Origin
China
Minimum Order
1
Packaging
1 set ceah box
Delivery
15 Days

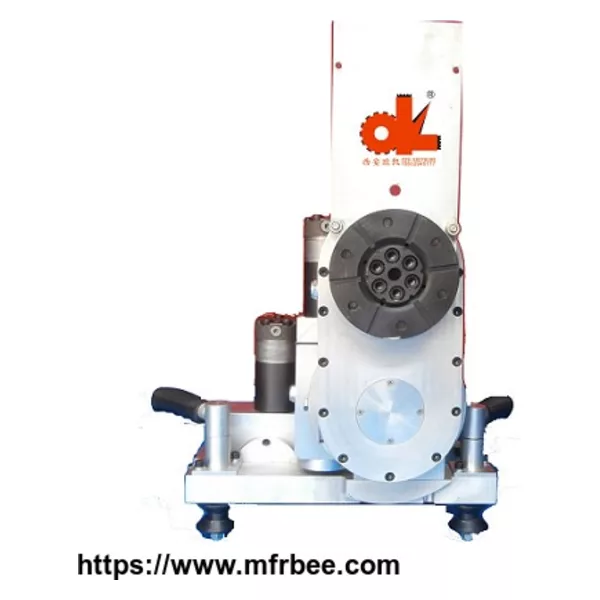

Hydraulic wall saw HWS-600TM
OUKAI new heavy duty full hydraulic swivel arm wall saw with automatic feeding and downfeeding regulation and self-adjustable roller guide system for cutting depths up to 710 mm

Other features

  • Torsion-free tracks in different lengths to guarantee an exact and vibration-free operation of the saw unit.
  • The 360 ° devoting arm guarantees the full utilization of the tracks.
  • The guiding system on rolls allows maximum accuracy while cutting with very low wear of the rolls.
  • The remote control guarantees convenient and safe operation.

Techincal data

1.Specification

Max start up blade diameter: 800mm

Max using blade diameter: 1600mm

Max cutting depth: 710mm

2.Wall Saw head

Output axle diameter: 60mm

Max working pressure: 200bar

Max fuel flow: 80L/min

Blade cutting method: Automatic

Speed of blade:500/900/1400rpm

Weight: 28kg

3.Hydraulic power unit

Input power: 25kw

Voltage: 380V/400V,3-phase ,50HZ

Control method: Hydraulic automatic

Weight (include Oil):165kg

Dimensions(L*B*H): 65*60*100 cm

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Asia
  • Founded Year:2002
  • Address:Floor 13 Building 1,MoKa NO.41 ZHANGBAWU Road West of Hi-Tech Industries Development Zone XIAN China
  • Contact:Liu Cheng
