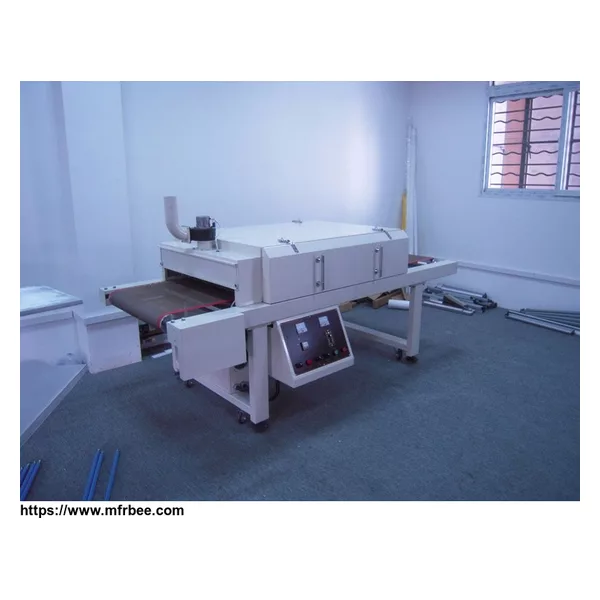

Screen printing IR conveyor dryer
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- 1pcs in wooden box
- Delivery
- 15 Days
Specifications
Thistextile conveyor dryer suitable for drying T-shirt, fabric, garments, etc after printing.
Feature:
Teflon screen belt, customers' designs are welcome.
Motor can be set to any speed and provides a smooth and even motion.
Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
Adjustable belt speed and tunnel temperature controls.
Use over 30% less electricity than other comparable products.
Parameter:
| Model | DIR-700 |
| Output length | 450mm |
| Input length | 750mm |
| Tunnel length | 1250mm |
| Belt width | 700mm |
| Belt speed | 2~6meter/minute |
| Temperature range | 0 ~230℃ |
| Power | 4.8KW |
| Dimension | 2500 X 1100 X 1200 MM |
| Weight | 350KG |
