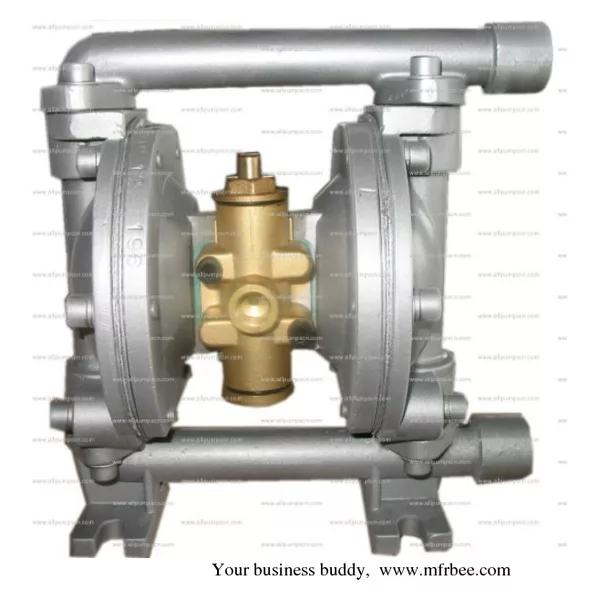

The QBY / HBY air operated double diaphragm pump not only can exhaust the flow liquid, but also can convey some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
Features
No need to pour drawing water
Wide flow and good performance
Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment(pneumatic pressure adjustment is between 1-7kgf/cm2)
No rotary parts and no bearing seals of diaphragm pump
No need use electricity of diaphragm pump
It can be soaked in medium
Simple structure and less wearing parts
It can transmit adhesive liquid(viscosity is below 10000 centipoises)
No need use lubrication oil of diaphragm pump
Applications
Peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Paint, pigment, glue and adhesive etc.
Various glazed slurries of tile, porcelain, brick and chinaware etc.
Various grinding materials, corrosive agent and clean the oil dirt etc.Various toxin and flammable or volatility liquid etc.
Various wedge water, cement slurry and mortar etc.
Various strong acid, alkali and corrosive liquid etc.
Used as a font-step transmission device of the solid and liquid separation equipment
Technical Data
Model | Discharge | Head | Exit Pressure | Sucked Lift | Grain Dia | Air Pressure | Air consumption |
(m3/h) | (m) | (kgf/cm2) | (m) | (mm) | (kgf/cm2) | (m3/min) | |
QBY-10 | 0-0.8 | 0-50 | 6 | 5 | 1 | 7 | 0.3 |
QBY-15 | 0-1 | 0-50 | 6 | 5 | 1 | 7 | 0.3 |
QBY-25 | 0-2.4 | 0-50 | 6 | 7 | 2.5 | 7 | 0.6 |
QBY-40 | 0-8 | 0-50 | 6 | 7 | 4.5 | 7 | 0.6 |
QBY-50 | 0-12 | 0-50 | 6 | 7 | 8 | 7 | 0.9 |
QBY-65 | 0-16 | 0-50 | 6 | 7 | 8 | 7 | 0.9 |
QBY-80 | 0-24 | 0-50 | 6 | 7 | 10 | 7 | 1.5 |
QBY-100 | 0-30 | 0-50 | 6 | 7 | 10 | 7 | 1.5 |
All Pumps Machinery provides QBY3 diaphragm pumps china Series air operated diaphragm pump for sale is a newly developed model of the third generation ADD pump series pneumatic diaphragm pump, with long service life, non-stop operation, not only can transport some medium that ...
The working principle of the diaphragm pump is that the motor drives the elastic diaphragm to reciprocate through the eccentric wheel so that the volume of the cavity changes. The inlet and outlet are designed as one-way valves to realize the suction and discharge of the ...
7122 series double head diaphragm pump is a new module that is independently developed by Keyto. Its main function is to achieve liquid aspiration and dispensing by means of reciprocating movement of the diaphragm driven by motor. This 7122 series dual-head micro diaphragm pump ...
