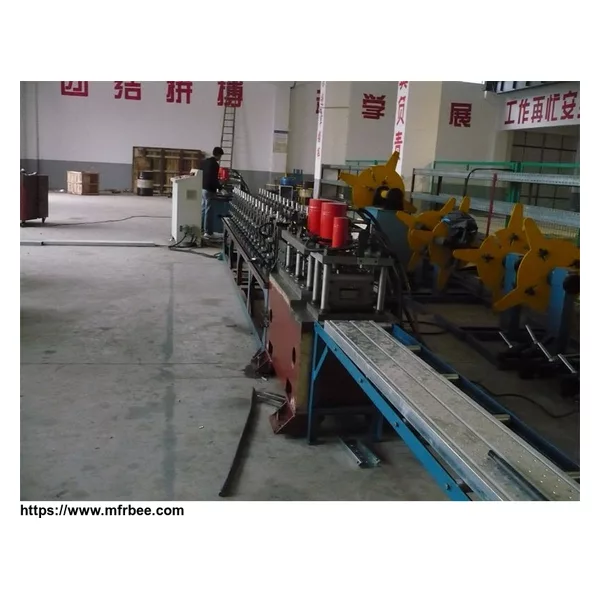

1, Forming Process
Decoiler — servo feeder — hydraulic punching device for gap and holes — roll forming device – collection table
2, Flow diagram
3, Technical parameter
1, Decoiler
a、 Load capacity: 2 ton
b、 Inside diameter of coil: φ490-φ510mm
Outside diameter≤φ1200mm external diameter
2、 Servo feeder
Servo motor : Mitsubishi Servo motor
3, Hydraulic punching device
4, Roll forming device
a、 Forming frame
b、 Forming roller: GCr15, quenching treatment: Hardness: HRC56-62º
c、 Power : 7.5kw frequency conversion motor
5, Electric control: PLC, Mitsubishi brand
