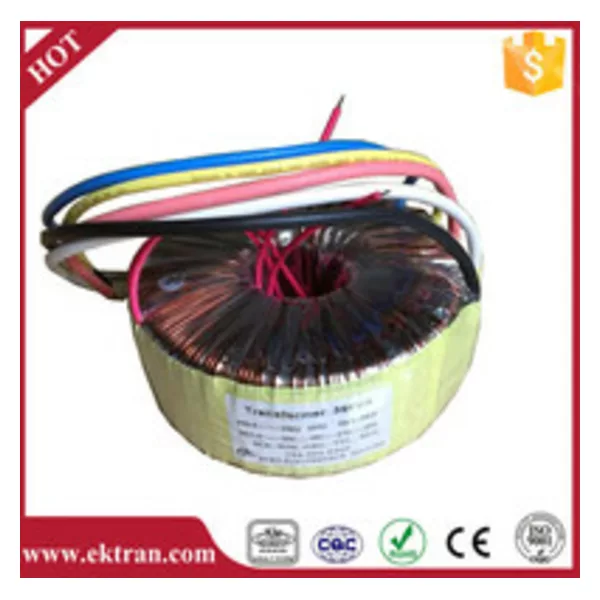

Single-phase toroidal transformers, transformator 360v 220v power range
from 20VA to 5000VA. Designed and tested
according to EN61558. Suitable for installation
in electronically equipment.
Designed as a safety isolating transformer with
separate insulated windings and prepared for
class II equipment.
Short circuit and overload protected with
thermal fuse on primary side. Up to 50% less
weight than a similar conventional transformer.
Low magnetisation currents and no-load losses.
Applications:
Suitable as safety isolating transformer in
constructions where low weight, flexible
dimensions and optimum conditions between
dimensions are preferable. Technical specifications - Input voltage: Customized
- Frequency: 50-60Hz
- Output voltage: Customized
- According to: EN61558
- Test/insulating voltage: 4kV AC RMS
- Construction class: II
- Insulation class: B (130°C)
- Ambient temp. (ta): 25°C
Mounting (2 kinds) 1.Parts for mounting supplied(rubber mats, screws and nuts) 2.Central proxy resin encapsulation and drilling |
