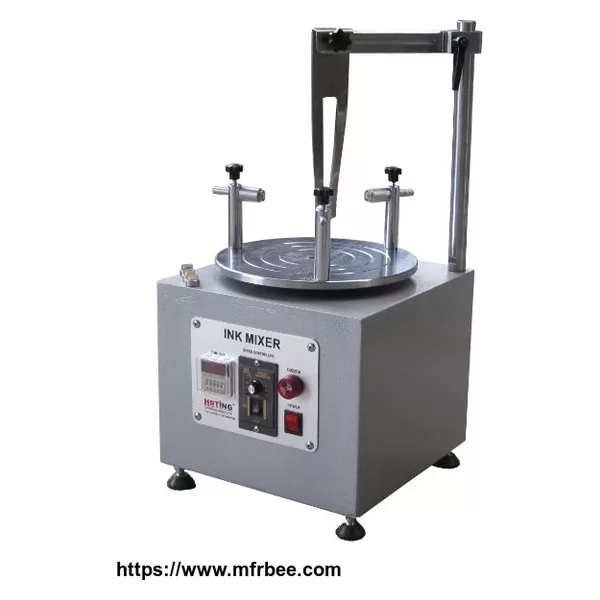

Automatic printing ink mixing machine

Minimum Order
1
Place Of Origin
China
Packaging
1pcs in wooden box
Delivery
5 Days

Application scope:

This series suitable for ink, photosensitive emulsion and other fluid material mixing



Specification:

Table running at elliptical orbit

Vertical adjustment prevents the blade from scraping the bottom of the container

Rotates clockwise or counter-clockwise

Mixing time can be adjustable

The adjust rotation speed can be controlled easily.

Easy to set-up and alarm signal after passing setting time.

Little vibration and noise.

Very simple to fix according to container size.

Japan NSK bearing, Fuji button, Korea Autonics timer and Taiwan T.W.T,motor



Parameter:

Model ML-5 ML-20
Ink capacity 5 L 20 L
Rotation speed 20-1200 RPM
Power 220V X 1p X 150W 220V X 1p X 180W
Weight 20kg 40kg
Dimension(W X D X H) 320 X 300 X 625mm 420 X 420 X 855mm
Special specification can be made for your requirement.
