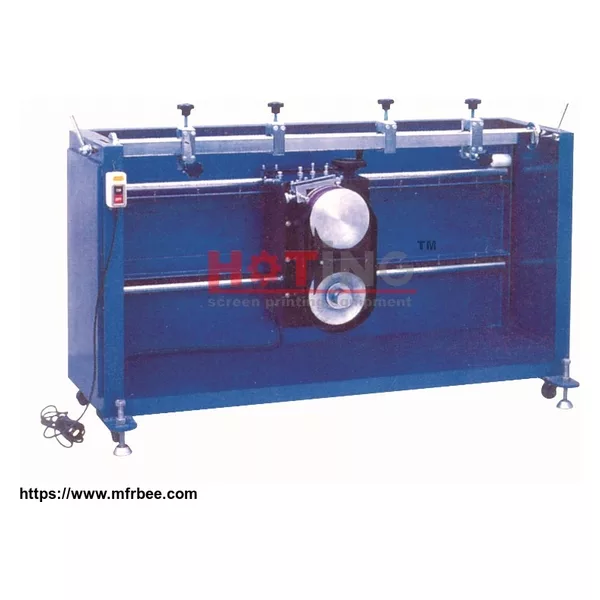

Manual squeegee grinding machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- 1pcs in wooden box
- Delivery
- 15 Days
Specifications
Application scope:
Parallel squeegee repair and fine grinding
Specification:
(1) The machine with powder coating, adopts emery cloth belt, high quality electrical components
(2) Adopt linear guide to make sure flatness
(3) Squeegee fixed with the frictioning take card lock design, can adjust the rubber deformation to ensure that the grinding quality, emery wheel is used for the grinding wheel, can offer
high precision grinding, long service life
(4) Can be used for mechanical blades and manual type blade grinding
(5) Special made grinding wheel, abrasive cloth belt no stress and squeegee deformation, no corrugated shape, ensure the grinding precision
(6) Grinding angle match the performance of various kinds of special printing
(7) Easy to operate,even without professional technical operations
Parameter:
| Model | SSM-1200 | SSM-1500 | SSM-2500 |
| Maximum grinding length | 1200mm | 1500mm | 2500mm |
| Grinding type | Abrasive belt | ||
| Grinding angle | 0° ~ 45°(Option) | ||
| Weight | Approx. 120kg | Approx. 150kg | Approx. 300kg |
| Dimension(W X D X H) | 1430×450×850 mm | 1730×450×850 mm | 2800×450×850 mm |
| ★ Customized squeegee grinding length is available. |
