Purpose:

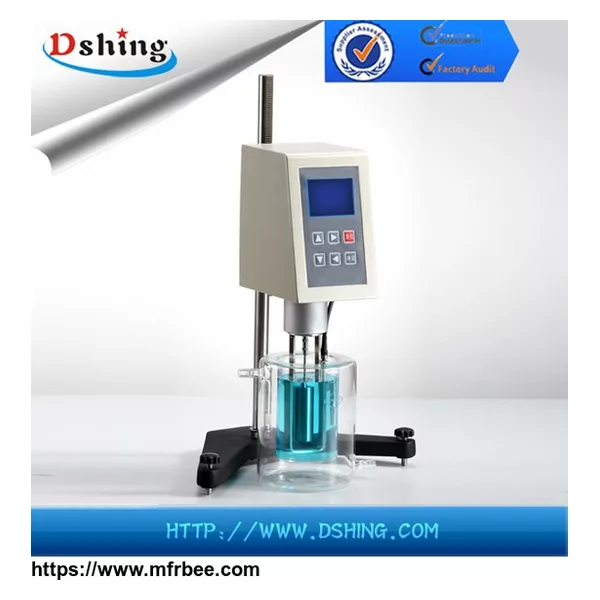

The instrument ismultifunctional.In the aspect of configuration, firstitadopts advanced mechanical design and manufacture techniques, and microprocessor controlling technologies,so as toaccurately collect test data; Take a blue background light, ultra-brighten LCD as its display, so it can display test data intuitively; And itdesigned with a RS232 port, so it can print out test data through a printer,alsoit can communicate with a computer using the software attached.
It is sensitive, reliable, beautiful and convenient to be operated. It is used to determine absolute viscosity of Newton liquids and apparent viscosity of non-Newton liquids andcan be widely used for determining viscosity of grease, paint, plastic, medicine, dope, adhesive, and washing solvents, etc.
Technical parameters:
1.Measurement range: 10~2000000mPa·s;
2. Spindles: four spindles of N0.1~4;
3. Spindle speed: 0.3, 0.6, 1.5, 3, 6, 12, 30 and 60 RPM;
4. Measurement error: ±3% (F·S);
5. Power supply: AC 220V±10%, 50Hz±10%;
6. Power supply:
(1) Ambient temperature: 5°C~35°C;
(2) Ambient humidity: not more than 80%;
