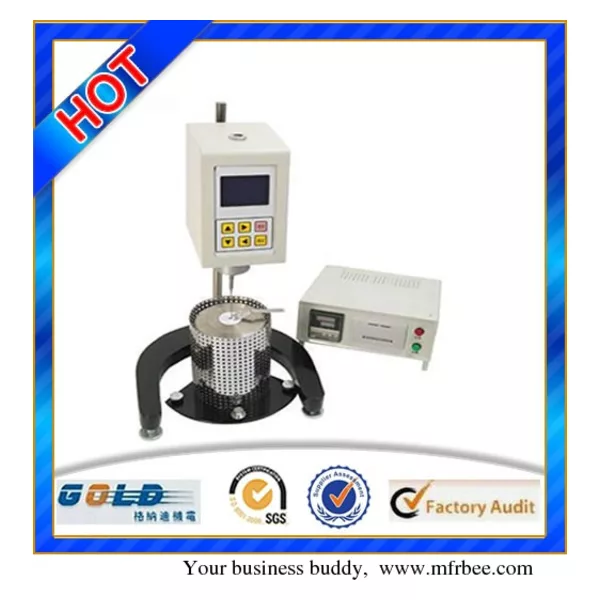

GD-1F High Viscosity Liquid Brookfield Viscometer
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
GD-1F High Viscosity Liquid Brookfield Viscometer
Characteristics and Advantages:
- designed and made as per T0625 in JTG.E20.
- widely used in testing Asphalt, hot melt adhesive, paraffin wax, high polymer and other fluid
- adopts a LCD display,i can show the viscosoty of samples(mPa.s),spindle No.,speed(RPM) ,temperature,torque(per cent),shearing stress,shearing rate and the measurement rage
- press the rotational speed as the scale and stepless regulation to satisfy the continuous test
- spindle is made of SS,anti-corrosion,convenient for user
- optional:application software ,heating stove up to 300°C and controller
Main technical specifications and parameters:
1. Measurement range: 25 mPa·s~1×107 mPa·s ( If choosing the No.30 spindle, the measurement range can extend to 2×107 mPa·s)
2. Spindle: No. 21, 27, 28, 29 total four types of spindles (the No.30 is optional)
3. Spindle speed: 0.1~200 RPM, continuously speed regulation (With 12 grades of speed)
4. Measurement error: ±2% (F·S), choosing the No.30 spindle, it will be ±3% (F·S)
5. Temperature controlling range: 25 °C~200 °C
6. Temperature controlling accuracy: ±0.1 °C
7. Sample cylinder cubage: 20 ml
8. Power supply: AC 220 V±10%, 50 Hz
9. Ambient temperature: 5 °C~35 °C (when the control temperature of the heater is close to the ambient temperature, turn on the air conditioner to allow the ambient temperature
is approximately 5 °C lower than the control temperature of the heater);
10. Relative humidity: ≤80%
Spare parts:
1.main unit
2.spindle
3.temperature controller
4.heater
5.sample container,shelf for sample container,cover for sample container,speacial clamp,wire fo sensor
6. optional parts:application software ,heating stove up to 300Deg C and controller
