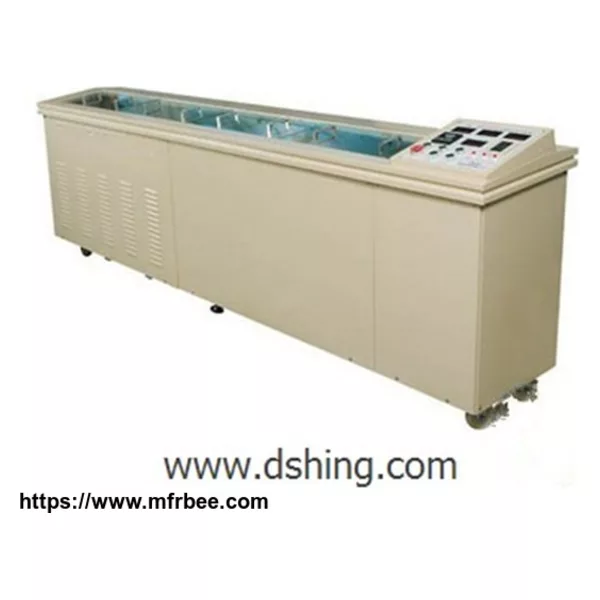

DSHD-4508D Asphalt Ductility Tester

I.Product intruduction:

1)DSHD-4508D Asphalt Ductility Tester is designed and developedas per standards GB/T4508, T0605 bitumen ductility test in the industrial standard JTJ052 and ASTM D113.

2)DSHD-4508D Asphalt Ductility Tester is usedto determinate the ductility of bitumen- the length while the bitumen being stretched to crack with a certain speed under regulation condition and temperature.The unit is cm.

II. Main technical specifications and parameters

1. Power supply: AC220V(-5%~+10%), 50Hz.

2. Measurement range: 2.0m(±10mm)

3. Heating mode: electrical heater

4. Heating power: 3200W

5. Circulation of bath liquid: strong magnetic pump

6. Temp. control range: 5°C~50°C adjustable, digital display

7. Temp. control precision: ±0.1°C.

8. Pull speed: two grades: 10 mm/min and 50mm/min.

9. Measurement precision: ±1 mm

10. Ductility display: digital

11. Cooling style: 1.5 P compressor, input power 950 w

12. Ambient Temperature: -10°C~+35°C

13. Relative humidity: no more than85%

14. Total power consumption: no more than4500W
