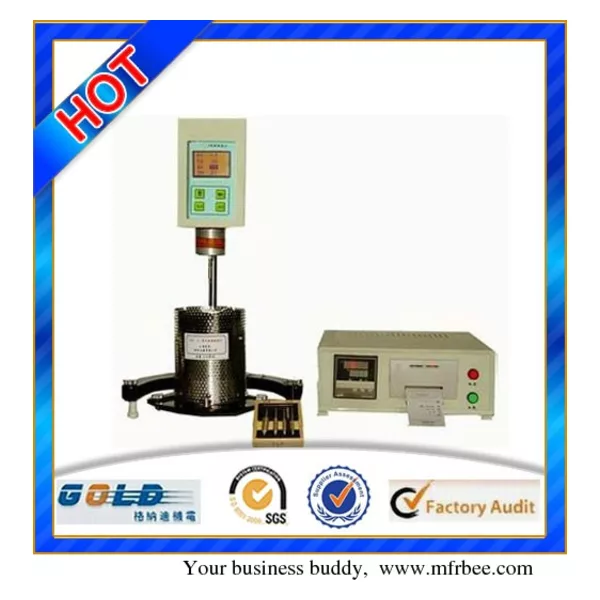

GD-1D Brookfield Viscometer
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
GD-1D Brookfield Viscometer
Characteristics and Advantages:
1.designed and made as per T0625 in JTG.E20.
2.adopts a LCD display,i can show the viscosoty of samples(mPa.s),spindle No.,speed(RPM) ,temperature,torque(per cent),shearing stress,shearing rate and the measurement rage
3.press the rotational speed as the scale and stepless regulation to satisfy the continuous test
4.spindle is made of SS,anti-corrosion,convenient for user
5.optional:application software ,heating stove up to 300Deg C and controller
Main technical specifications and parameters:
1. Measurement range: 100 mPa·s~2×106mPa·s (If use the N0.30 spindle, the measurement range can be extended to 4×106mPa·s);
2. Spindle: No.21. 27. 28 and 29 spindles (The No.30 spindle is optional).
3. Speed: 0.5, 1, 2, 5, 10, 20, 50 RPM
4. Measurement error: ±2% (F·S).If use the No.30 spindle, it will be ±3% (F·S).
5. Temperature controlling range: 45°C~200°C;
6. Temperature controlling accuracy: ±0.1°C;
7. Cubage of sample cylinder: 20 ml;
8. Power supply: AC 220 V±10%,50Hz;
9. Ambient temperature: 5°C~35°C (If it is near the controlling temperature, please use a air conditioner to make sure that the ambient temperature is about 5 °C lower than the
controlling temperature of heater.
10. Relative humidity: ≤80%
