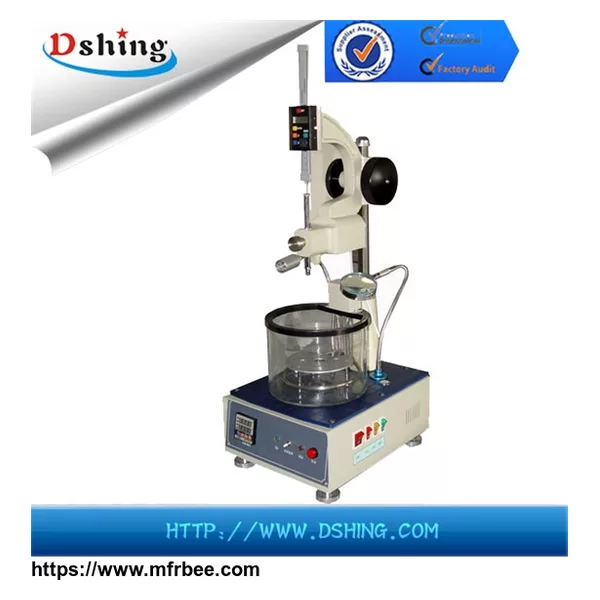

DSHD-2801E1 Penetrometer

1:DSHD-2801E1 Penetrometer is designed and developed as per the National Standard GB/T4509"Test Methods for Needle Penetration of Petroleum Asphalt", and T0604"Asphalt Needle Penetration Test" in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.

2:DSHD-2801E1 Penetrometer ismainly used to determine needle penetration of petroleum asphalt, modified asphalt, liquid petroleum asphalt and residues after evaporation of emulsified asphalt.

Technical characteristics and performance:

1. DSHD-2801E1 Penetrometer integrates new design concepts on penetrometer all over the world and is advanced, beautiful, and delicate;

2. The newly designed up and down assembly have coarse adjustment and fine adjustment, so the instrument can be adjusted directly.

3.DSHD-2801E1 Penetrometer adopts a newly designed heating structure. The heating and temperature measurement devices can be separated from the constant temperature bath, so the instrument is simply to be operated.

4. Equipped with automatic temperature controller and a high precision temperature sensor, so the instrument can conveniently set controlling temperature and is with high temperature controlling accuracy.

Technical parameters

1.Measurement range: 0~600 penetration;

2. Minimum scale division: 1 penetration;

3. Display mode: by a digital dial indicator of 0.01;

4. Temperature controlling mode: by a digital temperature controller;

5. Temperature controlling accuracy: 25±0.1°C (Ambient temperature should not be higher than 20°C);

6. Heating power: 200 W;

7. Constant temperature bath: made of harden glass;

8. Timing selection: 5 s or 60 s; timing error is less than ±0.1 s;

9. Standard needle: 2.5±0.05g; as per GB/T4509;

10. Others: Equipped with cold light source and a magnifier, so it is convenient to be operated.
