1. Product name:

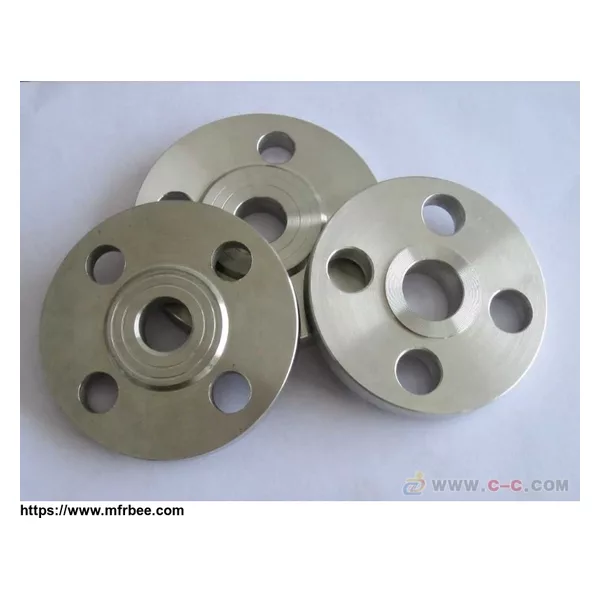

Item name | zirconium flange |
Standard | ANSI B16.5,JIS B2220,DIN2627-2628,ASME,GB/T9116,ASTM B16.5 |
Specification | 1/2"~ 24"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Application | Used in cars, glasses, medical equipment, electronics, petrochemical equipment |
Surface | FF, RF, TG, RJ etc |
Category | WNRF, SORF,BLAND,PL,SW |
2. Purity: Zr+Hf>99.95%, Hf<300ppm.
3. Confirmation: ISO9001:2008certified
4. Standard:GB/T OR ASTM
5.Trace Elements
Grade | Main Elements(ppm,max) | |||||||
Hf | Nb | Mo | Cr | Al | Ti | Mn | Ni | |
Zr+Hf>99.95%
| 200 | 5 | 10 | 10 | 100 | 10 | 5 | 50 |
Cu | Sn | Sb | W | Pb | Bi | Mg | P | |
5 | 50 | 5 | 10 | 5 | 5 | 5 | 10 | |
Si | N | C | H | O | S | Fe | ||
100 | 30 | 30 | 10 | 150 | 20 | 100 |
Product description Steel blind flange is also called blind board, and its proper name is flange cover. It is a flange without holes in the middle for sealing the pipe plug. There are many types of sealing surface, such as rise face, ring joint face, large or smalltongue face ...
Product description Spectacle Blind Flanges Features Forming:forged SIZE:1/2\"---48\" Standard:ASME B16.48 Spectacle Blind Flanges Materials Stainless Steel : OCr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ASTM A182-F304, F304L, F304H, F316, ...
Product description Blind flange is also called blind board, and its proper name is flange cover. It is a flange without holes in the middle for sealing the pipe plug. There are many types of sealing surface, such as rise face, ring joint face, large or smalltongue face and ...
