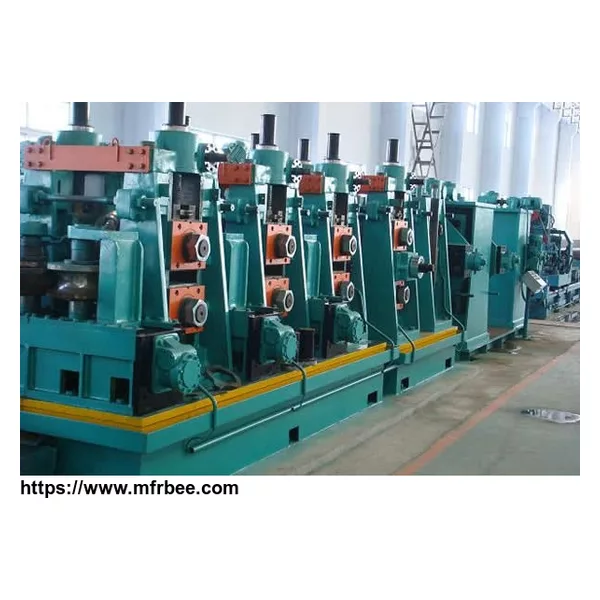

Straight Seam Tube Welding Machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Waterproof and seaworthy plywood case
- Delivery
- 60 Days
Specifications
Raw material (strip) →feeding→Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → Packing → Storage
2. Adapt materials:
Hot rolled or cold rolled steel strip
Material: Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
3. Processing steel pipe size range:
(1) Processing range: Round pipe Φ219-Φ325mm.
Square&Rectangular pipe 150x150—250x250
(2) Thickness of Round pipe: 3.0-10.0mm
Thickness of Square&Rectangular pipe: 3.0-10.0mm
4. Installed capacity: 1200KVA
5. Water consumption: 60m3/h
6. Solid-state high-frequency Welder: 800KW or 100KW
7. Workshop Request: length, width and height 150-250m X 12m X 5m
- Country: Afghanistan
- Business Type:
- Market:
- Founded Year:
- Address:
- Contact:Amy Gu
