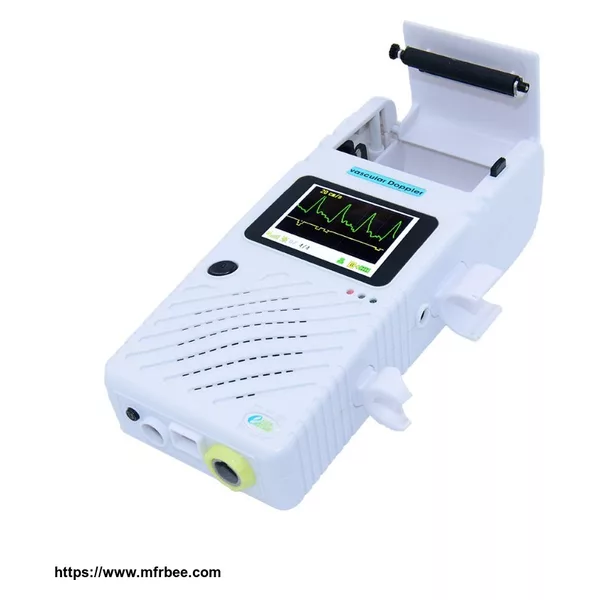

vascular doppler

Features：

● Bidirectional Doppler: reflect blood flow status in both directions at the same time.

● Check arteries/veins vascular status separately

● Host built-in memory to store waveform and data

● Can set probe direction, mode, frequency, language, time scale,waveform data ,etc

● Built-in data interface, host can be used alone, or comply use with the computer

● Bidirectional vascular analysis of Doppler software

● Real-time display of blood flow waveform and data

● Microcomputer control, accurate and reliable, friendly interactive interface.

● Bidirectional and unidirectional blood flow for option.

● Ergonomic design, convenient and practical.

● Bluetooth (extensions).

● built-in internal printer

Specification：

● Implementation of the standards: YZB / Guangdong 1615-2012

● Category: BF type of equipment

● Security Classification: internal power class

● Operating modes: continuous operation

● Band: The host: 200 ± 80 ~ 5000 ± 1000Hz

● Probe: 350 ± 80 ~ 2500 ± 500Hz

● External Output: Speaker

● Transmit waveform : sine

● Ultrasonic frequency: 8.0MHz ± 10%

● Average sound intensity ultrasonic power: ≤ 50mW / cm2

● Speed range: not narrower than 40cm / s - 200cm / s

● velocity error: ≤ 20% (relative error)

● System gain:> 100dB

● Audio bandwidth: 0.2 KHz ~ 7.0 KHz

● Display: 320 x 240 dot TFT

● Power Supply: AC-DC work. (AC 220V/110V adapter; DC 9V /5000mA power,built-in lithium battery)

● Total power consumption: <50W;

● Continuous working time: ≥8 hours
