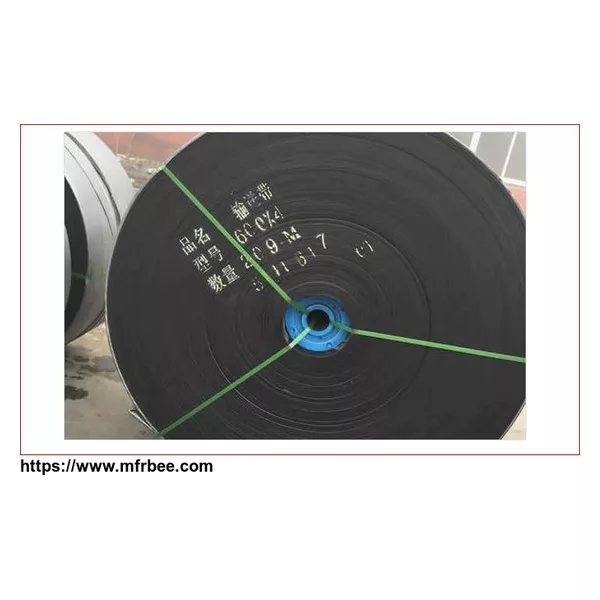

Nylon Conveyor Belt
Product Quick Detail
- Minimum Order
- 100
- Place Of Origin
- China (Mainland)
- Packaging
- According to customer requirements
- Delivery
- 10Days
Specifications
In addition to general use, there are oil resistant,acid alkaline resistant,cold resistant,static electricity conducting and other types.
Nylon canvas is used as skeleton, the structure is same to ordinary conveyor belt, having light and thin belt body, strong force, fatigue resistance, impact resistance, good groove forming property, long service life and other characteristics. Widely applied in force type conveyor belt line with long distance and heavy-load.
Technical requirements: implement GB/T7984-2013 standard
1. Interlayer Adhesive Strength:
| Item | Between fabric | Between covering layer and belt core | |
| Thickness of covering layer ≤ 1.5mm | Thickness of covering layer ≥ 1.5mm | ||
| Average value of all test samples | 4.5 N/mm | 3.2 N/mm | 3.5 N/mm |
| Note: Maximum value of all sample should not exceed 20N/mm |
2. Technical of Product Specifications:
| Fabric structure | Fabric materials | Fabric | NO.of fabric layer | Width (mm) | Cover thickness (mm) | ||
| wrap | weft | top | bottom | ||||
| Nylon canvas | Nylon fiber | Nylon fiber | NN100 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 |
| NN125 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
| NN150 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
| NN175 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
| NN200 | 2-8 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
| NN250 | 2-8 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
| NN300 | 2-8 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
| Note: The thickness of covering rubber, number of fabric layer, width and each roll length can be according to client’s requirements designed. |
