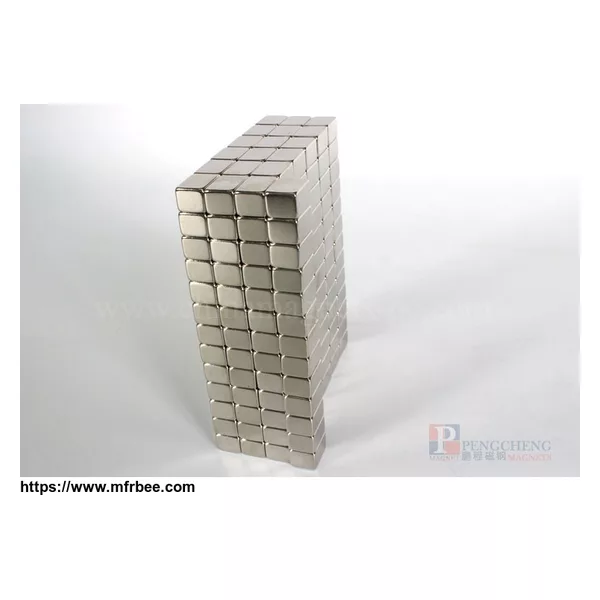

Nickel Coated Neodymium Block Magnet

General Introduction

Neodymium Magnets, also known as NdFeB, NIB, or Neo magnets, are the most widely-used type of rare earth magnets. It is the strongest type of permanent magnet made from an alloy of Neodymium, Iron, and Boron with the Nd2Fe14B tetragonal crystalline structure. It has replaced other types of magnets in many applications in modern products that require strong permanent magnets, such as motors in cordless tools, hard disk drives, and magnetic fasteners.

Features

1. High energy ranging from 8MGOe to 48MGOe with wondrerful coercive force.

2. Less expensive, and mechanically stronger and less brittle than SmCo

3. For most applications, coating or plating is recommended.

4. Advantages:

A) High energy

B) Very high Hc and Hci output

C) More economical than SmCo

D) Wonderful performance at ambient temperature

Specifications

1. ISO9001:2008 standard

2. Typical Coat: Ni, Ni-Cu-Ni, Zn, Tin, Epoxy, Ni-AG, Ni-Au, etc.

Grade Available

N35-N52 working temperature: 80° C

30M-45M, 50M working temperature: 100° C

30H-48H working temperature: 120° C

30SH-45SH working temperature: 150° C

28UH-40UH working temperature: 180° C

28EH-38EH working temperature: 200° C

30AH, 33AH working temperature: 230° C
