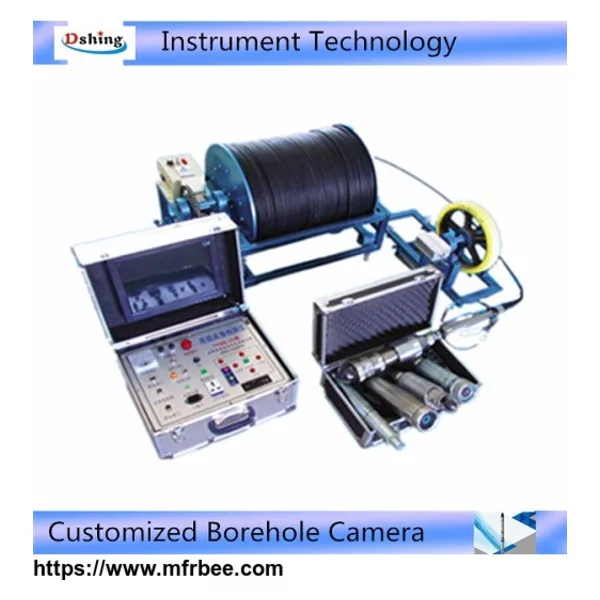

Customized Borehole Camera

Minimum Order: 1

Place Of Origin: China (Mainland)

Packaging: N/A

Delivery: 15 Days

Introduction

Main box: ABS host, 220 V or customized

Winch: Electric-Manual Winch(Could be used as electric or manual).

Display: 7-17 inches high brightness LED display.

Video system: SD card video

Rotating probe: Circle rotate 360 degrees, horizontal 180 degrees

Depth counter: Accurate to 0.05 m depth

Logging cable: 6-8 core socket pull, customized length.

Centralizer: High elastic centralizer stainless steel

Toolbox: Connection cables and accessories

Electric-Manual winch

Electric-Manual winch: Can be used as electrical or manual winch.

Rotary camera

Camera size: 90 mm Φ

Camera material: stainless steel 304

Camera lens material: explosion-proof optical glass

Camera pixels: CMOS camera, 1200 line

Lens Angle: circle turn 360 °, horizontal turn 180 °

Camera lights: front 18 highlight patch lamp bead, rear 16 strong LED light source lamp beads

A brightness control: can be adjusted by button on the main box front light source brightness, dimming level 5

15 mpa probe pressure: pressure, maximum pressure depth of up to 1500 meters

Displayer

12 inches of liquid crystal display: 291 x 251 x 48 mm

Aspect ratio 4: 3

Contrast: 500:1

Brightness: 1000 CD / ㎡

Resolution: 1024 x 768

Power: DC 12 v

Color system: PAL/NTSC/SECAM

Logging cable

Wire material: modification of polypropylene

Anti-Pulls: 280 kg

Putside diameter: 8.2 mm

Heat-resistant: 70 degrees

Country: China (Mainland)
Business Type: Trading Company
Market:Oceania,Africa Southeast Asia, Eastern Europe, South America, North America
Founded Year:2013
Address:
Contact:patrick cheung
