Double-Camera Borehole Camera
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1. Host

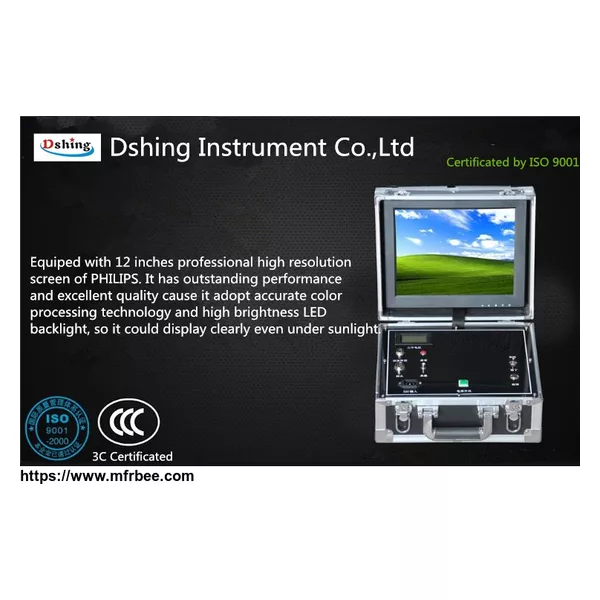

Equiped with 12 inches professional high resolution screen of PHILIPS. It has outstanding performance and excellent quality cause it adopt accurate color processing technology and high brightness
LED backlight, so it could display clearly even under sunlight.
2. Probe Camera
The camera adopt Sony HD camera, its solution is upto 1200 lines,it has the functions that automatic light-sensitive, automatic focusing,Low intensity of illumination compensation and automatic
backlight compensation. The operating temperature of the the probe is from -20 to 70 degree Celsius，waterproofing grade is 10Pa. High transparent resin lens, would not be broken easily.
Equiped with high power highlight LED. Could be connected to the winch conveniently. Diameter: 80mm.
There are two cameras inside the probe. One is at the end of the probe,it is bugeye lens,inbuilt 6-9 pieces LED lights. At the middle of the probe, it is the other one camera-360 degree rotary,
inbuilt 81 pieces LED lights，the light The light is more uniform. The light will rotate with camera at same, could inspect the wall of the well carefully.
3. Electric Winch
Fully automatic winch, adopt the most advanced double conversion technology, high quality RV gearbox and autobrake System, could adjust the speed freely.
4. Wellhead pulley
5. VCR
1.Put one memory card(4-8G) into the TF slot of the VCR.
2.Inset the output end of the power adapter into the “DC12V ” socket of the VCR.
3.One end of the signal cable connected to the “V/A” socket, the other end connected to “Video interface” of the host.
4.Inset the input end of the power adapter into 220V power source, turn on the host, the VCR will start to record video automatically.
5.When finish recording, press “FUNCTION” button first, otherwise, the last few minutes of the video could not be stored.
6.Don’t touch ”SW” button by mistake, otherwise may lead to mistake.
Please remove the data or use an new card in time.
