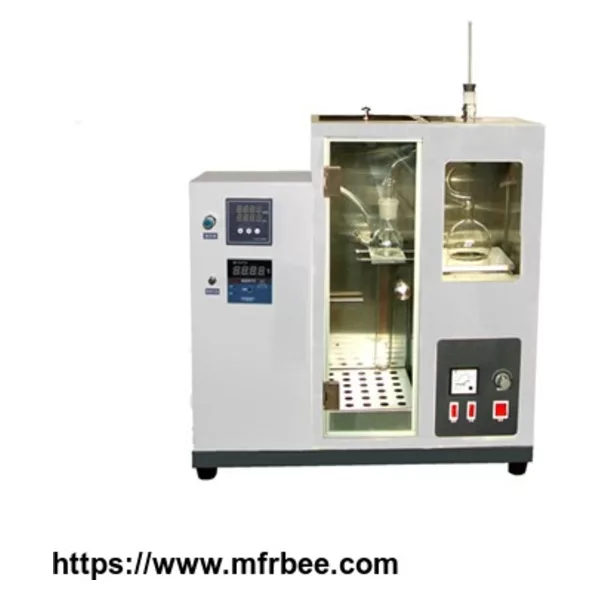

DSHD-0165A Vacuum Distillation Tester

A:Brief description:

　 DSHD-0165A Vacuum Distillation Tester is designed and made as per the industry standard of People's Republic of China SH/T0165-92 Test Method for Distillation of High Boiling Point of Petroleum Products at Reduced Pressure.

DSHD-0165A Vacuum Distillation Tester is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc.

B: Main technical features:

1. Power supply: AC 220 V±10%, 50 Hz

2. Heating power:

(1) Heater for distillation flask: 1000 W

(2) Heater for receiving flask: 350 W

3. Heating power for distillation flask: 0W to 1000 W, adjustable

4. Temperature range for air bath of receiving flask: room temperature to 100°C

5. Temperature sensor in the air bath: Pt100 platinum resistance

6. Temperature controlling mode for air bath: Automatically control by digital display temperature controller

7. Temperature controlling accuracy: ±1°C

8. Cubage of buffer vessel:1000 ml

9. Max. Residual pressure of vacuum pump:no more than2 mmHg

10.Digital display pressure meter: Absolute pressure(0-200)mmHg

11. Illumination light in the air bath of receiving flask: Energy-saving fluorescent lamp

12.Working condition:

(1) Ambient temperature: 5°C to 35°C

(2) Relative humidity:no more than85%
