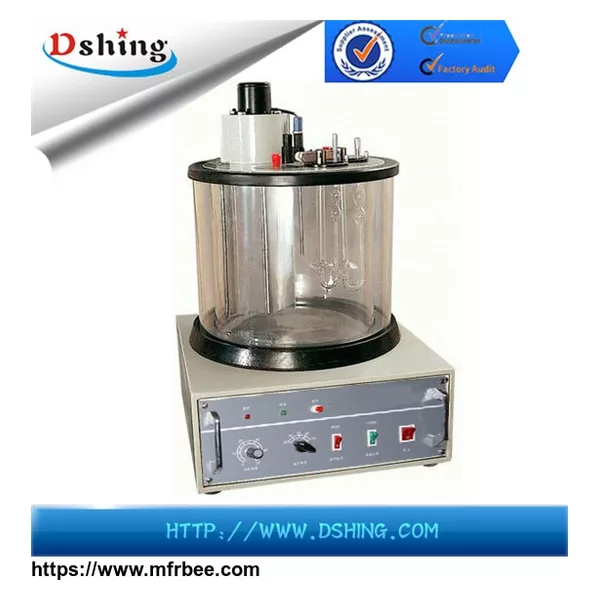

SDHD-265D Kinematic Viscometer

High quality kinematic viscometer

A:Brief description:

SDHD-265D Kinematic Viscometer is designed according the industry standard of People's Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester.

SDHD-265D Kinematic Viscometer isappliedto determine kinematic viscosity of liquid petroleum products (Newton liquids) at a constant temperature as per national standard GB/T265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity. Also it can be used to do determination as per ASTM D445.

B:Technical advantages

1.It adopts five grades of temperature control: 20°C,40°C,50°C,80°C,100°C.The temperature control accuracy can reach ± 0.01°C.

2.It adopts hard glass vessel and heat preservation cover(double-layer vessel).Good heat preservation and easy to observe the sample.

3.It adopts desktop and all-in-one machine design,convenient to use.

4.It adopts electric stirrer to ensure the uniform of bath temperature.

C:Technical specifications and parameters

1.Power supply: AC(220±10%)V,50Hz

2.Heating power: 1000W(auxiliary heating), 650W(temperature control heating)

3.Stirring motor: power 6W,rotating speed is1200RPM

4.Temperature control range: room temperature-100°C

5.Temperature control point:20°C,40°C,50°C,80°C,100°C

6.Temperature control accuracy: ±0.01°C

7.Constant temperature bath: 20L, double-layer vessel

8.Ambient temperature: -10°C-35°C

9.Relative humidity: no more than85%

10.Temperature sensor: high accuracy thermistor

11.Overall power consumption: no more than1800W

12.Capillary viscometers: 7 pieces in total,inner diameter: 0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm

13.Overall dimension:530mm×400mm×670mm(bath is included)

D:More Kinematic Viscometer :

DSHD-265H Kinematic Viscometer

DSHD-265D-1 Kinematic Viscometer

DSHD-265D Kinematic Viscometer

DSHD-265C Kinematic Viscometer

DSHD-265B Kinematic Viscometer

DSHD-265-2 Capillary Viscometer Washer

DSHD-265-3 Automatic Capillary Viscometer Washer

DSHD-265G Low-temperature Kinematic Viscometer
