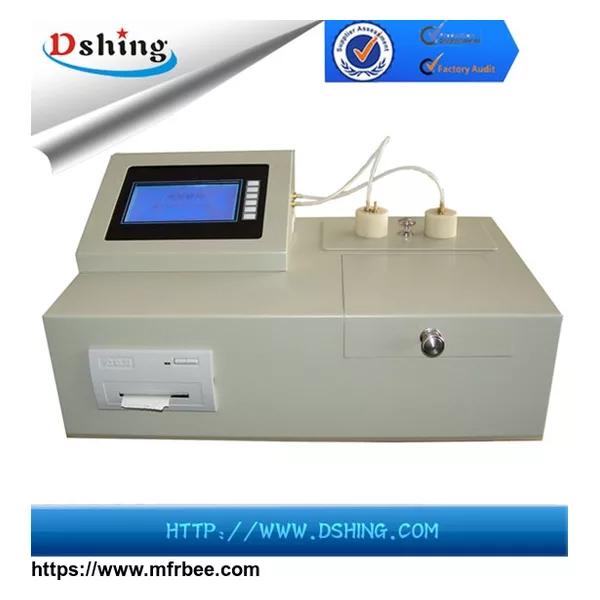

DSHD-264A Automatic Acid Number Tester

A:Brief description:

DSHD-264A Automatic Acid Number Tester can meet the requirements of the National Standard of People's Republic of China GB/T264 Test Method for Acid Number of Petroleum Products. DSHD-264A Automatic Acid Number Tester is equipped with blue LCD screen, prompt menu and blank buttons,microcomputer to make determination and print test data automatically,So as tothe whole test procedures can be automatically completed.

In addition to this, DSHD-264A Automatic Acid Number Tester adopts magnetic stirrer for stirring,so there is no noise. It is safe, reliable, and compact, has beenwidelyused inpetroleum refinery companies, power plants, and scientific research institutes. It is one of the indispensable instruments for oil analysis and quality inspection.

B:Main advantages:

1. It adopts magnetic stirring.Noiseless and reliable.

2. It adopts micro-computer to automatically determine and print test result.The test process realizes automation.Easy to operate.

3. The instrument adopts LCD screen and English interface.Convenient to operate.

4. The measurement range of acid value is wide.The test result is correct.It is a kind of advanced and applied acidity testing machine.

C:Main technical specifications and parameters

1. Power supply: AC 220V±10%, 50 Hz

2. Maximum power consumption:less than100 W

3. Overall dimension: 460mm×310mm×270mm

4.Minimum resolution: 0.001 mgKOH/g

5. Measurement accuracy:

(1) Acid numberless than0.1: ±0.005 mgKOH/g;

(2) Acid numberno less than0.1: 5% of the displayed value

6. Repeatability: 0.004 mgKOH/g

7. Ambient temperature: 10°C-40°C

8. Relative humidity:less than75%

9. Measurement range of acid number: 0.001-0.999 mgKOH/g

D:More Acid&Base Number Tester:

DSHD-251 Base Number Tester

DSHD-259 Water- Soluble Acid & Base Tester

DSHD-264 Acid Number and Acidity Tester

DSHD-264A Automatic Acid Number Tester
