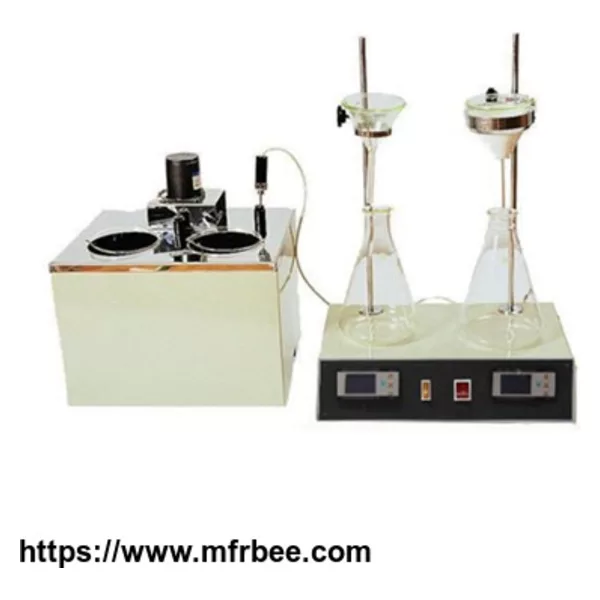

DSHD-511B Mechanical Impurity Tester

A: Summary

DSHD-511B Mechanical Impurity Tester is designed according to the national standard of People's Republic of China GB/T511 Test Method for Mechanical Impurity of Petroleum Products and Additive (Weight Method).

Its main function isto determine mechanical impurity in hydrocarbons, heavy oils, lubricating oils, and additives.

B: Main technical specifications and parameters

1. Relative humidity:no more than85%

2. Heating power for water bath: 1000 W

3. Total power consumption:no more than1200 W

4. Bath temperature display: Digitally displayed by LED

5. Temperature controlling accuracy for water bath: ±1°C

6. Power supply: AC 220V±10%, 50 Hz

7. Funnel temperature display: Digitally displayed by LED

8. Temperature controlling accuracy for funnel: ±2°C

9. Size: (1) Controlling case: 390 mm× 260 mm× 590 mm

(2) Water bath: 390 mm× 290 mm× 370 mm

10. Ambient temperature:no more than35°C

11. Temperature controlling range for funnel: room temperature~90°C, adjustable

12. Temperature controlling range for water bath: room temperature~90°C, adjustable
