DFW Outdoor Cable Branch Box

DFW Outdoor Cable Branch Boxes - Complete Insulation & Maintenance Free

DFW outdoor cable branch boxes

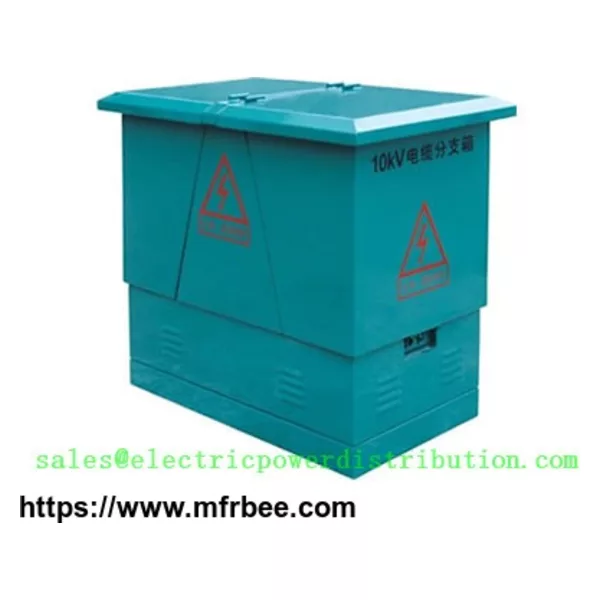

A DFW outdoor cable branch box.

DFW outdoor cable branch boxes are widely used for industrial parks, residential areas and commercial centers.A green DFW outdoor cable branch box.

DFW outdoor cable branch boxes are used for power distribution networks of mining, airport, railway, harbor and power station.

The model and meaning of DFW series outdoor cable branch box.

Features:

Complete insulation, complete seal, maintenance free.

Simplify urban cable network system, saving investment.

Outdoor type, anti-dust, moisture proof, anti-flood, resistant to corrosion, strong environmental applicability, flexible combination and meeting various connection requirements.

Small volume, compact structure, beautiful appearance, easy installation. Equipped with display, short-circuit indicator and arrester can also be added.

Small occupation, low in height, coordinate with surroundings, flexible connection program, convenient installation and operation.

2000 A cable end can be plugged & unplugged with load. Meanwhile, it has the function of disconnecting switch and it can be equipped with short-circuit fault indicator to locate the fault point quickly.

It improves the flexibility of line operation, maintenance & overhaul, reduces line outage time and improves power supply reliability by the arbitrary combination of load switch with cable end or the combination of circuit breaker with cable end. It can replace part ring main units (RMUs) and switching stations, which can reduce the comprehensive cost of system.

Working conditions:

Altitude: ≤ 1000 m.

Temperature range: -30 °C to +40 °C.

Relative humidity: ≤ 95%.

Ambient air should not be polluted by combustible gas, but it can be polluted by smoke, dust and corrosive gases.

Workplaces should be free of frequent violent vibration.

Technical parameters

Items Parameters Note

Rated voltage (kV) 12 Can be equipped with load switch, circuit breaker and fuse, and the technical parameters can be seen in fitting introductions.

Rated frequency (Hz) 50

Rated current (A) 630

1 min power frequency withstand voltage (kV) 42

Lightning impulse withstand voltage (kV) 75

Protection degree IP33

Overall size (width × height × depth) (mm) 650 × 1150 × 880 1300 × 1500 × 1200
