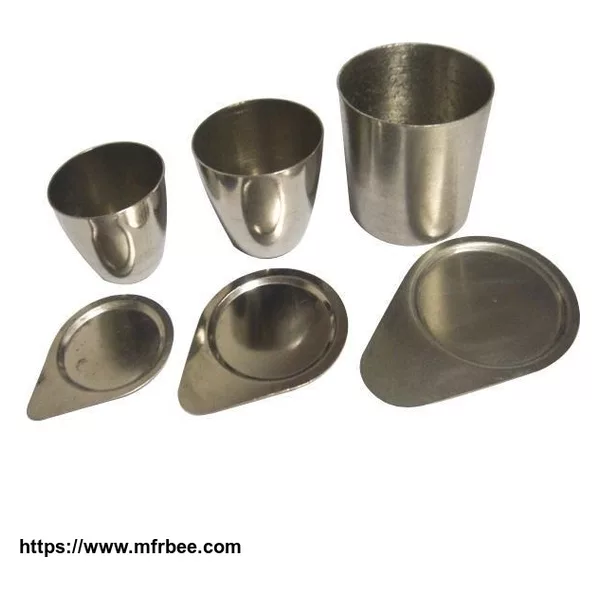

Nickel crucible,Nickel N200 N201 Crucible(30ml, 50ml, 100ml)

Dimension:30ml

Height:36.8mm,Thickness:0.7mm

Caliber:41.9mm,Bottom diameter:22.4mm

Weight:28g

Total Weight(include the cover):34g

Dimension:50ml

Height:41.5mm,Thickness:0.8mm

Caliber:46.4mm,Bottom diameter:27.1mm

Weight:36g

Total Weight(include the cover):44g

Dimension:100ml

Height:50.4mm,Thickness:0.9mm

Caliber:55.5mm,Bottom diameter:47.3mm

Weight:80g

Total Weight(include the cover):109g

Notes:

1. The melting point of Nickel is 1455℃. Nickel have strong alkali resistance and anti-corrision. So the nickel crucible usually is used to melt Fe alloy, slag, clay, fire resistance

material.

2. The melting temp of Nickel crucible can not surpass 700℃, Under high temperature, the

nickel is easy to be oxidized.

3. Nickel crucible can not be used for the ignition of the precipitate.

4. Nickel crucible is suitable to melt NaOH Na2O2Na2CO3 NaHCO3 etc but not suitable KHSO,

NaHS04, K2S2O, Na2S2O7.

5. The metal such as Al,Zn, Pb,Sn,Hg, all can make nickel crucible very fragile. Borax also can

not be melted in nickel crucible.

6. Nickel crucible containing traces of chromium, we should pay attention to it when using.
