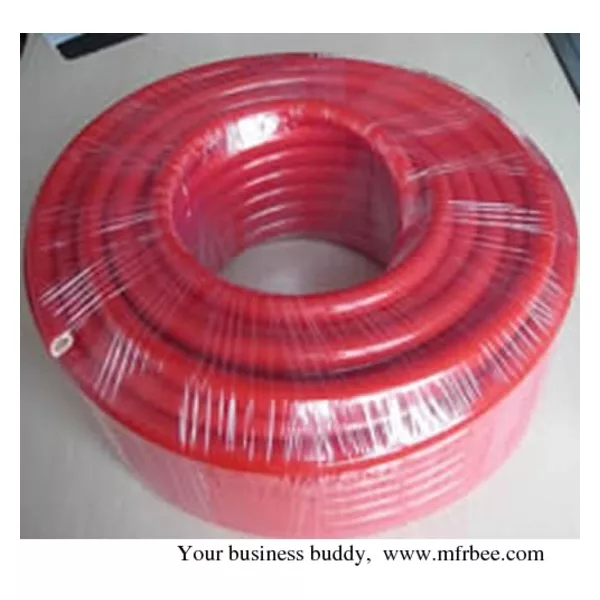

Fabric Reinforced Steam Hose

Place Of Origin: China

Packaging: pallet

Delivery: 15 Days

Fabric reinforced steam hose is a kind of fabric rubber hose. The product structure and manufacturing process are the same to the ordinary fabric rubber hose. The hose is often made by natural rubber, styrene-butadiene rubber and rubber material, or neoprene rubber with good heat resistance.

The working pressure: Steam is 0.4MPa or less, hot water is 0.8MPa or less. Tube diameter range is of ф13 - 102mm for conveying steam or hot water at 150 °C or less. Length: Standard 20m, specific length can be customized.

Structure of fabric reinforced steam hose:

Fabric reinforced steam hose inner layer and outer layer are both made by heat resistant synthetic rubber, the middle enhanced layer is cotton canvas, and the tube body has characteristics of soft, lightweight, flexible, high heat resistance.

Features: Layers have good heat resistance and the hose bursting pressure is not less than 10 times of the working pressure. It is high temperature corrosion resistance, small tolerance of the inner and outer diameter, ozone resistance, and resistance to wear.
