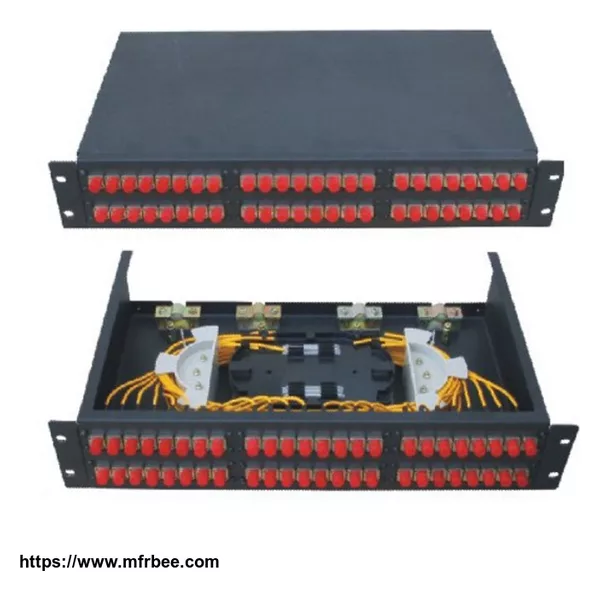

ODF Patch Panel, Fiber Optic Box
Product Quick Detail
- Minimum Order
- 10000
- 100
- set
- Packaging
- basic packing
- Delivery
- 10
Specifications
Among those famous odf patch panel p1 series manufacturers - greentelftth.com and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized odf patch panel p1 series made in China. Our factory is waiting for your contact.
Description
ODF patch panels are designed to provide a high density 19\" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for
fiber patching,fixation,splicing and management.
Green Telecom ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTx construction , ODN construction,
LAN, Metro network and CATV.
Features
�� Rack-mounted 19\" with sliding drawer design
�� Integrated with splice cassette and cable management elements
�� Manages large quantities of fiber with high density design
�� Easy to maintain and extend fibers in the future
�� Fiber bend radius control more than 40mm
�� Suitable for the splice of ribbon and bunchy cables
�� Maximum capacity up to 96 ports
�� Efficient space for cable management
�� Cable led out from left or right side of patch panel rear part
�� Fully comply with Telcordia GR1209/1221 qualifications
Specification
| ODF Patch Panel P1 Parameter | |
| Adaptor Type | SC,FC,ST,Duplex SC,Duplex LC |
| Capacity | 12,24,48,72,96 fibers |
| Body Material | Cold rolled steel or stainless steel |
| Surface Treatment | Powder coating black or white color |
| Installation Method | Standard 19 inch rack mount |
|
Size Dimension(mm) |
485(W) x325(D)x46(H)(19\"1U) for 12/24F |
| 485(W) x325(D)x92(H)(19\"2U) for 48F | |
| 485(W) x325(D)x140(H)(19\"3U) for 72F | |
| 485(W) x325(D)x185(H)(19\"4U) for 96F | |
| Strengthen Member Fixation | Yes |
| Bending Radius(mm) | > 40 |
Customization Event
��Body Material
��Body Color
��Fiber Capacity
��Pigtail Type
��Adaptor Type
��Branding Logo Print
Ordering Information
ODF-P1-XX -XX-XX--XX-XX--XX
1 - 2 - 3 - 4 - 5 - 6
| 1 Body Material | 2 3 Adaptor | 4 Capacity | 5 Pigtail | 6 Body Color |
| 01:Cold Rolled Steel | Nil:No Adaptor | 12:12F | 09B:0.9mm Bunchy | WT:White |
| 02:Stainless Steel | SU:SU/UPC | 24:24F | 09S:0.9mm Single | BK:Black |
|
|
SA:SA/UPC | 48:48F | 09R:0.9mm Ribbon | GY:Grey |
| FU:FC/UPC | 72:72F | 20S:2.0mm Single | ||
| FA:FC/APC | 96:96F | 30S:3.0mm Single | ||
| LU:LC/UPC | ||||
| LA:LC/APC |
|
