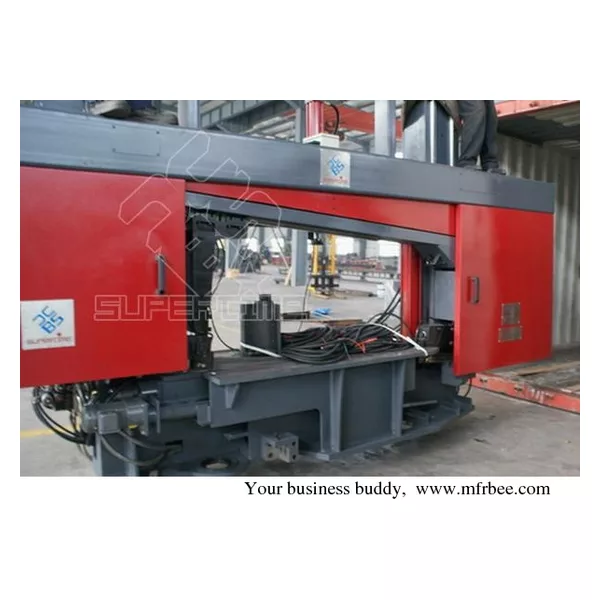

CNC rotation Band Sawing Machine Model
DJ1250
A. Application
It was mainly used for cutting H Beam, Slot steel, Box beam and bar steel with characteristics of easy operation, high efficiency and strong power etc.
B. Parameters:
Technical parameter of I beam sawing machine
Sawing H-beam size ( without roation)
(Web height x flange width) Max. 1250 mm×600 mm
Mini 200 mm×75
mm
Saw Blade Size T:1.6mm W:67mm
Motor power Main motor 15 kW
Hydraulic pump 5.5kW Saw blade linear speed 20~100 m/min
Feeding speed 0-2 m/min software control
Rotation angle 0°~45°
Worktable Height About 800 mm
C. Characteristics
a) The machine is mainly composed of saw-frame, bed(worktable), vertical feeding mechanism, upright press mechanism, rotation worktable, hydraulic
system and cooling system etc.
b) Saw frame is welded by square tube and steel plate with aging treatment to ensure strengthen and precision.
c) Saw frame feeding is controlled by hydraulic servo proportional valve and encoder realize digital control.
d) Blade saw keep good tensile in rapid moving condition by hydraulic tensile control.
e) Power brush was equipped on blade saw to clean chips, which can adhere to blade occasionally, automatically.
f) Spiral chips-removal system is equipped on machine to collect chips.
