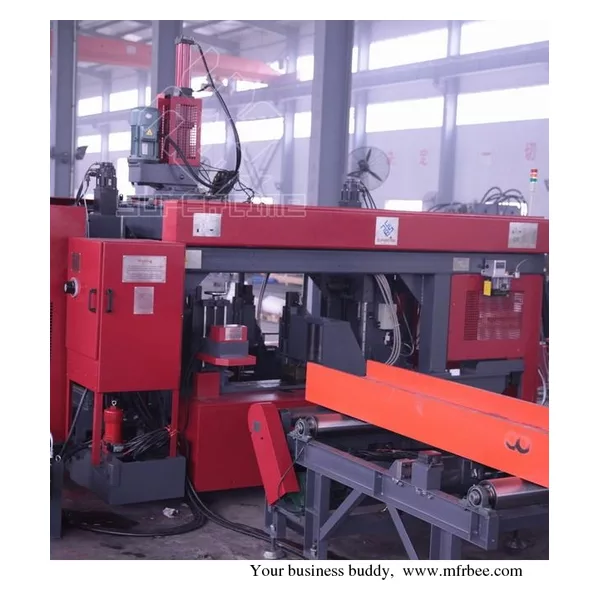

CNC H beam drilling machine
1) high precision positioning , dolly feeding driven by servo motor
2) 3D drilling line machine
3) Composed one CNC beam line together with CNC band saw machine
Features:
a) Equipped with three drilling spindles, the drilling process finished when the work piece going through the equipment.
b) Three drilling spindles can drill holes simultaneously, equipped with self-controlled stroke drilling spindles.
c) No need to set thickness of work piece and length of drills, with automatic speed conversation, high efficiency from rapid feeding to work feeding.
d) CNC & PLC control systems, CRT display, operating software based on WINDOWS platform, simply and convenient programming and visual preview.
e) High-grade atomizing cooling system, prolong the drill’s work life.
f) Each drilling spindle, equipped with professional gear-motor from famous products.
g) Main primary hydraulic pressure, electric components are domestic and international famous products.
Parameters:
Name Unit Parameter Remark
Range of workpiece
H beam mm 150x80~1250x600
U beam mm 150x80~1250x300
Box beam mm 150x80~1250x300
Thickness mm ≤80
Length m Standard 15 By client request
Short material restrictions mm Automatic process≥3000
Manual process:690~3000
Drill power box number piece 3
Range of diameter mm 5~40
rotation of spindle r/min 30~2000
Taper of spindle M4
motor power of spindle KW 3×11
CNC beam 3D drilling machine SWZ1250,SWZ1000 etc.
you can try drilling machine for drilling to get through more products
This CNC drilling machine employs AC servo motor to drive the X axis and Y axis, while its Z axis is positioned by high accuracy raster ruler. By using semi-closed closure digital control system, the machine has reliable performance. The operation of the machine can either be ...
