358 mesh fencing provides the highest degree of physical perimeter protection, ideal for sensitive areas requiring the maximum degree of security. From prisons and nuclear establishments; to
computer centres, research laboratories and warehouses; to schools and retail areas, 358 mesh security fencing will provide outstanding security.
Advantages :
The aperture is 72.2mm horizontal x 8.7mm vertical and makes 358 security fencing extremely difficult to penetrate using conventional hand tools, thus providing a high delay factor.
Despite the high degree of security, the visual impact of a 358 fence on the environment remains very discreet. It is specifically configured to give maximum visibility (important for clear camera
surveillance and to identify intruders.)
358 security fencing is designed for compatibility with electronic alarm and detection systems.
Weld strength of this kind of security fencing is minimum of 75% to steel strength guaranteed on every weld.
Common sizes:
358 security fence
Inner aperture:72.2×8.7mm
Wire diameter:4mmm
Width: to 2.8m
Tensile of the wire:600-750N/m2
Welded strength:60%-80%
Height: to 6m
Surface treatment：
Zinc Class A (min. 275g/m²) or Class C (min. 110g/ m²) - coated - PVC Coating Optional. Heavy galvanised wire Class A (min. 275g/m²) or Lightly Galvanised wire Class B (min. 135g/m²) - coated - PVC
Coating Optional.
358 Galvanized Steel Mesh of Epoxy or Polymer Coating
Inner aperture:72.2×8.7mm
Wire diameter:4mmm
Width: to 2.9m
Tensile of the wire: 600-750N/m2
Welded strength: 60%-80%
Height: up to 4.8m
Fence post: 80 x 60mm, 80 x 80mm or 120 x 60mm.
Advantages:
The aperture is 76.2mm horizontal x 12.7mm vertical and makes 358 security fencing extremely difficult to penetrate using conventional hand tools.
• Mesh panels with wire welded at every intersection
• Overlapped by a minimum of 75mm at posts to maintain integrity of protection

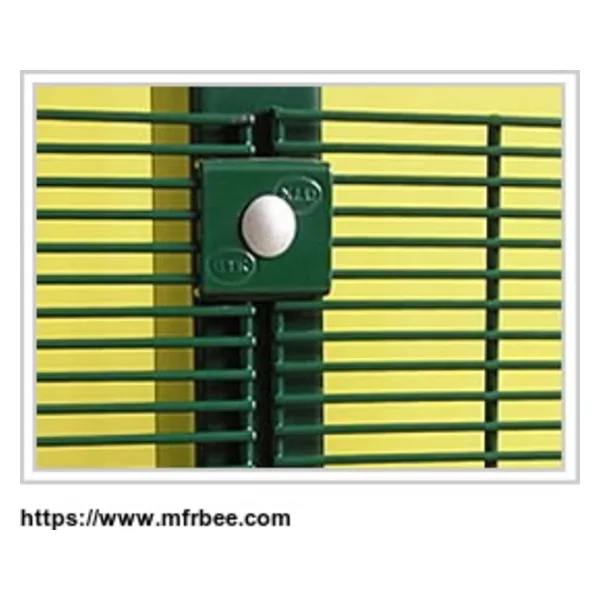

• Unique vandal and tamper-proof panel to post fixing
• Extremely strong
• Can be stepped to accommodate sloping ground
• Can be fixed to walls with cranked posts
• Post tops can be customised to carry barbed/razor wire, Rota-Spike, Alarm-aFence electric fence lines, CCTV cameras etc
• Matching swing and sliding gates available for pedestrian and vehicular access.
Features:
Anti-climb: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult.
Better visibility: flat, two-dimensional profile, easier to see through than chain link.
Specifications:
1/2" x 3" x 8 gauge
1" x 3" x 8 gauge
Panel size from 2m to 4m
Finished by hot dipped galvanized or powder coated after galvanized, Any color available.
