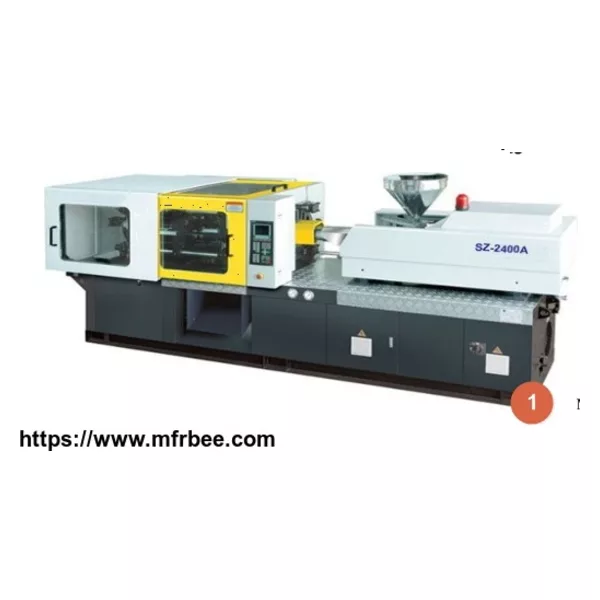

PLC plastic injection molding machine

FOB Price
USD $36,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Wooden case
Delivery
25 Days
Max. clamping force KN 2400
Max. opening force mm 530
Space between tie bars(V×H) mm 555×555
Mold height(min-max) mm 200-570
Max. daylight mm 1100
Ejector force KN 61.5
Ejector stroke mm 135
Ejector quantity / 9
Screw diameter mm 55 60 65
Screw L/D ratio L/D 22.9 21 19.4
Theoretical shot volume cm3 665 791 929
Plasticising weight(PS) g 605 720 845
Injection pressure Mpa 210 176 150
Theoretical injection rate(PS) g 176.5 210 245
Plasticising capacity(PS) g/s 26.4 32.5 40
Screw torque N.m 2000
Max. screw rotate speed r/min 150
Injection stroke mm 280
Pump motor power KW 22
Pump pressure Mpa 16
Heating power KW 18.5
Heating zone / 5
Size(L×W×H)mm6200×1600×2100
Net weight Ton 8.0
Oil tank capacity Liter 440
International designation / 2400-1390
