Gabions Architectural Wall Cladding

Minimum Order
1
Packaging
N/A
Delivery
15 Days




Gabions are mostly used as soil protection retaining wall or mass gravity retaining




structures for landscape construction. Welded wire mesh gabions can also be used as




architectural mesh in buildings. Main types of architectural gabions: Galvanized




steel, pvc coated or Galfan coated welded gabions. The cages are filled with stone




to form a flat container form, then placed one by one and connected firmly to each




other with high tensile lacing wire. They are used to build an ancient-feeling




cladding for the walls in castles or villa. Welded mesh gabions inner lined with




geo-mat can be used for military bastion.








Reasons that gabions are chosen for architectural wall cladding:




1, The welded mesh panel structure gabions are hot dipped galvanized or green




plasticized, hence achieve the surface of bright silver or Dark green color or other




colors for options. They offers different styles of decorations to the building. You




can choose according to your design needs.
2, The gabion boxes with hot dipped galvanized steel or plastic coated steel mesh




enjoy good corrosion resistance and work for a long time. Hence can form a permanent




wall cladding that is maintenance free. It will not collapse even under big scope of




deforming.
3, The cost of the welded mesh gabions are economic.
4, The stone gabions offers a long-time-story-telling feeling and suit all castles.
5, The gabions baskets are designed with collapsible structures for filling natural




stones. The stones can be easily found anywhere, to save cost and to give a nature




decorative effect.
6, The gabions wall cladding plays the role of retaining the soil as well as




decoration.
7, The hexagonal twisted mesh gabions are not suitable for wall cladding as the mesh




are flexible and not as solid and strong as welded mesh basket containers.




Specification of Welded Mesh Gabions for Cladding Walls:

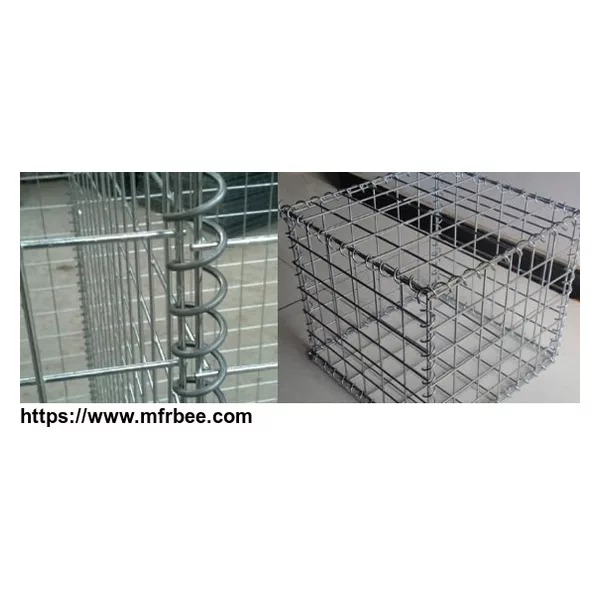

Structures: Welded mesh panels square baskets or rectangular baskets. Fixed with




spring steel lacing wire.
Wire Diameter: 3mm-5mm.
Mesh Opening: 2\'\'x2\'\',3\'\'x3\'\',4\'\'x4\'\',and more.
Surface treatment: electro galvanized, hot dip galvanized, PVC spraying, PVC soaked,




Galfan coated and so on. The welded wire mesh panels are coated before or after




welded at options at different cost.








Specification of Welded Wire Mesh Panels for Making of Such Gabions:




Welded Mesh size:




50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your




request. Square hole or rectangular hole.
Mesh Panel Size:0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m, 2*2m, 2.21*2.13m and




more.
Also supplied in square panel or rectangular panel for making of different shapes of




gabions boxes.
Finish Electro galvanized after welded Hot dipped galvanized welded PVC coated




after welded.








Welded Mesh Gabions are also Used:
Welded gabions have a wide range of uses besides architectural uses. They are used




in slope support, foundation pit, mountain rock face mesh protection gabion, slope




vegetation (green), railroad highway isolation guarding block. They are also made




into cages, nets mats, scour protection of rivers, levees and seawalls, reservoirs




and river closure with a cage. For control of river water flow, flood control,




massive soil erosion control. By using of gabions, they can make the river banks




receive permanent or semi-permanent protection.
