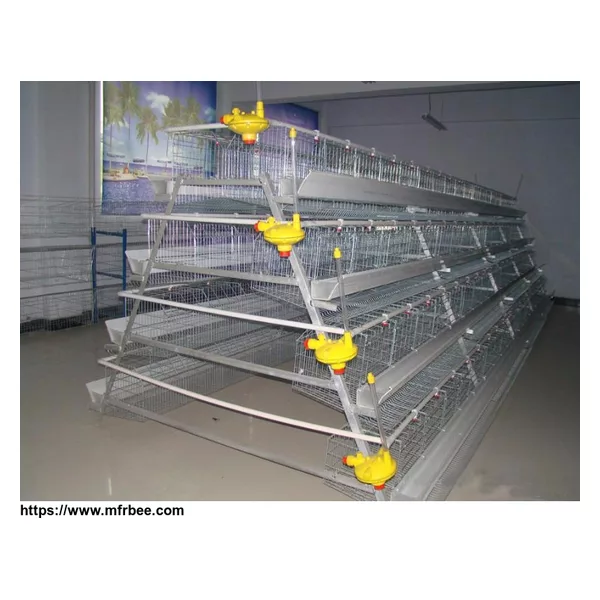

Poultry Cage for Layer Chicken Farm

1.Material: low carbon steel wire Q 235

2.Surface: Electric galvanized, hot dip galvanized, plastic coated

3. What is difference of electric galvanized and hot dip galvanized ?

Electric Galvanized: Surface smooth, bright, zinc coating: 20-30g/ m2. In the humid environment, it is easy rust, but after the rust does not affect use, life span: 15 years

Hot Dip Galvanized: surface zinc is thick, can reach about 500g/m2, It has the corrosion resistance of high strength. The surface have zinc knot, not smooth, life span: 25 years



4.Wire diameter: 3.0mm-3.2mm

5. What size we supply:

Model (A Type)	BYC-1	BYC-2	BYC-3	BYC-4	BYC-5
Type	3 tiers, 4 doors	3 tiers, 5 doors	3 tiers, 5 doors	4 tiers, 4 doors	4 tiers, 5 doors
Capacity	96 birds	120 birds	120 birds	128 birds	160 birds
Size /door	0.47x0.54x0.37m	0.39x0.54x0.37m	0.44x0.54x0.37m	0.47x0.54x0.37m	0.4x0.54x0.37m
Size/ cage	1.88x0.54x0.37m	1.95mx0.54x0.37m	2.2x 0.54x0.37m	1.88x0.54x0.37m	1.98mx0.54x0.37m
Size/ set cage	1.88mx2.3mx1.5m	1.95mx2.3mx1.5m	2.2mx2.3mx1.5m	1.88mx2.5mx1.8m	1.98mx2.5mx1.8m

6.Accessory:
-Nipple drinker: 304 stainless steel ball, Effective control the water, 360 degree drinking. Long time use, simple disassembly, health & safety. More drinker type for your select
-High quality PVC feed trough, Durable, corrosion resistance, Not easily broken
Loading capacity: >60kgs/ pcs, not fall off.
-Angle iron steel frame, Size: 3x3cm and 4x4cm, Surface can be electric galvanized and hot dip galvanized.

7. Feature
1. High Production - Egg production is much higher as chicken conserve their energy for production.
2. Reduced Infections - Chicken have no direct access to their faeces and thus no serious health hazard.
3. Reduced Loss From Eggs Breakages - Chickens have no contact with their eggs which simply roll out.
4. Less Labor Intensive - Automated watering system and simplified, less labour intensive feeding process.
5. Reduced Wastage – There is less wastage on animal feeds, and proper feed ratio per chicken.
6. Reduced Shrinkage & Pilferage - In the battery cage, the farmer can easily count his chicken at any time.
7. Pure Manure - It is much easier to evacuate the waste in the battery cage system unlike the deep litter which is much more stressful. The pure manure is also sold at a premium price.

8. Why Use cages in Poultry Production?
1.Reduce feed wastage and maximize productivity in layer production
2.Increased production
3.Better overall management of flock
