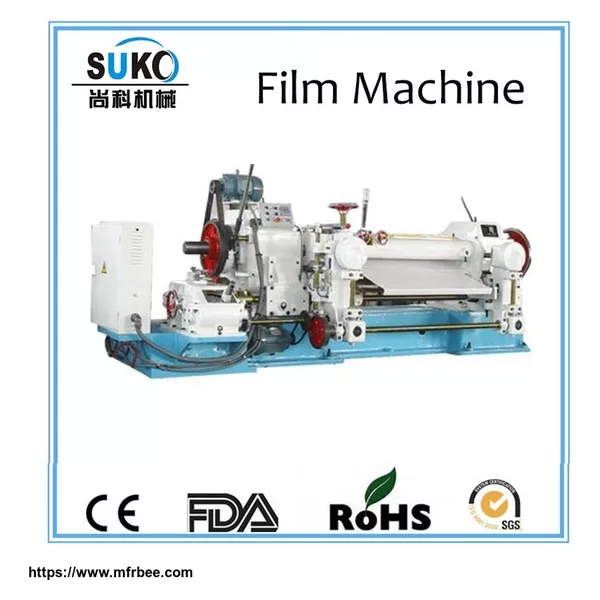

Plastic film manufacturing process for PTFE Teflon film

Place Of Origin
China
FOB Price
USD $15,000.00 / Piece
Minimum Order
1
Type
Skiving machine
Packaging
Plastic film making machine packed by wooden box.
Delivery
15 Days

Features of Plastic film making machine

1.anti-voltage intensity

2.high breakdown voltage

3.wide operation temperatures

4.Chemical resisting

5.High working temperatures

6.Low friction

7.Surface protect material

Technical specification

Description Parameter
Length of the knife and the nose bar 2100 mm
Max width of PTFE sheet 2000 mm
Maximum diameter of the PTFE billet to be cut φ400 mm
Thickness range of PTFE sheet 0.20-8 mm
Rotational speed of the main shaft (stepless ) 1—15 r/min
Diameter of the main shaft φ110 mm
Power of the main motor 45 KW (Frequency conversion motor)
Total power of the machine 55 KW
Net weight ≈12600 Kg
Overall dimension (length×width×height) 7200×1900×1600 mm



web:http://www.sukoptfe.com/
E-mail: export08(at)sukopte.com
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:USA, Russia, Korea, Saudi Arabia, India, UAE etc.,Americas,Asia
  • Founded Year:2002
  • Address:No.5, Lvshu Road, Xinbei District, Changzhou, Jiangsu 213000
  • Contact:Liu sammy
