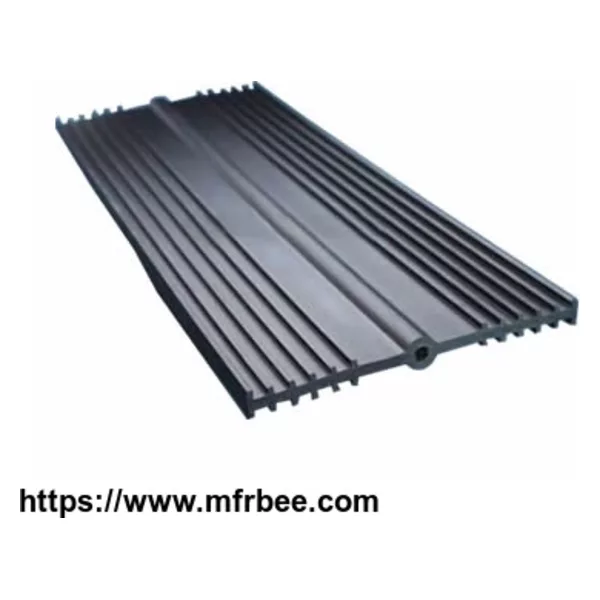

Buriedrubber waterstop
Specification
Material: rubber.
Species: CB type, CP type; 651, 652, 653 and other type.
Length, width and thickness can be customized.
Buried Rubber Waterstop Properties
Number Item Index
B S J
1 Hardness (shore A) 60±5 60±5 60±5
2 Tensile Strength (MPa) ≥ 15 12 10
3 Elongation at Break % ≥ 380 380 380
4 Compression Set 70°C × 24 h % ≤ 35 35 35
23°C × 168 h % ≤ 20 20 20
5 Tearing Strength KN/m 30 25 25
6 Brittleness Temperature °C ≤ -45 -40 -40
7 Hot Air Aging 70°C × 168 h Hardness (shore A) ≤ +8 +8 -
Tensile Strength (MPa) ≥ 12 10 -
Elongation at Break % ≥ 300 300 -
100°C × 168 h Hardness (shore A) ≤ - - +8
Tensile Strength (MPa) ≥ - - 9
Elongation at Break % ≥ - - 250
8 Ozone aging 50 pphm: 20%, 48 h Grade 2 Grade 2 Grade 0
Note: If there are other requirements, inspection items can be appropriately added according to buyer and seller. If evaluating mold test in line with users, its anti-mold property should be equal
to or above Grade 2.
Specification of 651:
Width × thickness (mm): 300 × 6, 300 × 8, 350 × 6, 350 × 8.
Specification of 652:
Width × thickness (mm): 280 × 6, 280 × 8, 300 × 6, 300 × 8, 350 × 6, 350 × 8.
Feature
High elasticity.
Capable to withstand hydrostatic pressure.
Adjust for subsidence and seismic movements.
Can arise compression deformation under various loads.
Adapt well to deformation and waterproof.
Wear, aging, corrosion, rust, tear resistance.
Setting holes ensure the waterstop fix with the nearest steel bar convenient and firmly.
Temperature range from -45°C to +60°C.
Application
Buried rubber waterstop can be applied to various types of concrete structures to prevent liquid leaking in or out, such as dams, reservoirs, subway, culverts, tunnels, sewage treatment plants,
water conservation, subways, sluices, underground facilities, aqueducts, roof, irrigation canals, sea walls, etc.
