Plastic blind drain
Product Quick Detail
- FOB Price
- USD $13.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

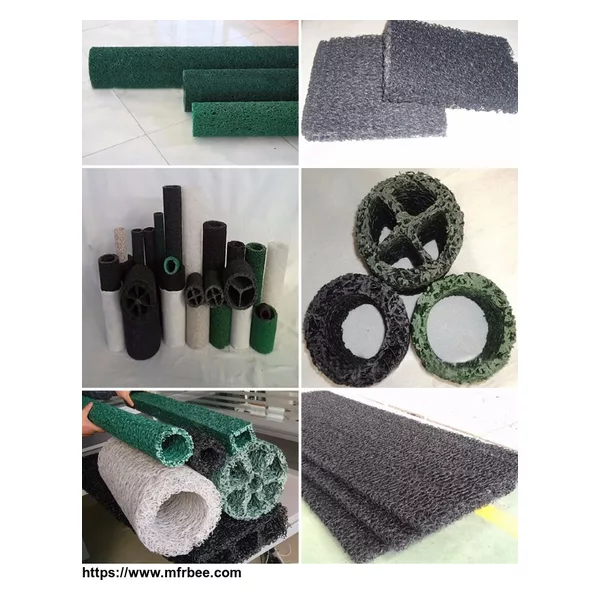

Plastic blind drain
The plastic blind drain overcomes the disadvantages of the traditional blind ditch. With some advantages of good drainage, excellent pressure resistance, lightweight, good flexibility, greatly
reduce the labor intensity of workers, and construction efficiency. Therefore it has been widely welcomed by the most engineering projects, such as, highway and roadway subgrade, retaining wall,
landfill, roof garden, building foundation, underground irrigation and so on.
Specifications:
Product name: plastic blind drain.
Material: thermoplastic synthetic resin.
Color: green, black and white. Other colors are also available according to your requirements.
Shape: square, circular, sheet.
Diameter: 50 mm - 400 mm.
Length: 2 m - 50 m.
Note: the length of plastic blind drain can be customized.
Features:
Plastic blind ditch material composition fiber is about 2 mm silk, mutual contact point and melting into forming, and form into three-dimensional reticular body. Its principle is the same with the
truss of steel structure principle. The surface opening rate is 95% - 97%, which is 5 times more than that of the porous pipe, is 3-4 times of the resin mesh tube. And its surface water absorption
rate is extremely high.
Due to the three-dimensional structure, its gap rate is 80% - 95%, constitute space is lightweight, compressive property is 10 times stronger above than resin for pipe structure. Therefore, even
because of overload pressure, due to the three-dimensional structure, the residual porosity can reach more than 50%, does not exist the problem of water barrier, and no need to consider that it
will be damaged by soil pressure.
Great compressive strength, under 250 kPa pressure, the compression rate is lower than 10%.
Add anti aging agent, durable, it can be placed in the water or the soil for a few decades, it can still ensure stability.
Compression resistance and flexible, for the corners or other curves can also be construction, very light, if the depth of the backfill is in 10 cm or so, it can also be used for bulldozer
backfill, etc.
Because of the above characteristics, so traditional blind ditch on various issues, such as uneven settlement or due to overloading caused partial occlusion, crushed to interrupt function caused by
void nothing, all can be resolved through the plastic blind drain materials.
Due to the use of hot melt method to molding but not use binder, so it will not collapse by aging and peeling adhesive.
Besides these advantages, plastic blind ditch also features permanent using life, easy for construction, good durability, lightweight, excellent flexibility, adapting to the deformation of soil,
greatly decrease the labor intensity of workers and high construction efficiency.
Applications:
Drainage for building roof garden.
Ash heap drainage in thermal power plant.
Drainage for tunnel and underground channel.
As the drainage liner for pressure relief method.
As the sieve material for sewage treatment projects.
Drainage for retaining wall (vertically and horizontally).
Drainage for treatment of soft soil foundation horizontally.
Drainage for roadbed and road shoulder of highway, railway.
Drainage for hillside slopes, bank slopes and embankment slopes.
Drainage for subways, underpasses and underground freight yards.
Drainage for coal piling field, wastes landfill sites, and fertilizer piling field.
Underground irrigation and drainage systems of agriculture and horticulture industry.
Drainage for green field of sport field, golf course, baseball field, football field, airport, park and other green lands.
Packaging:
PP woven, black plastic film or double layers geotextile for outer packing, or at your request.
