We offer lead glass in a variety of standard sizes to meet the needs of nearly any application. See the chart below for our standard x-ray glass sizes. We also offer custom size lead glass up to a
maximum of 3m*1.2m. Quotes for custom size leaded glass are available upon request.
Product Description
model
|
refractiveindex
|
density
|
lead equivalent
|
sio2
|
pbo
|
other material
|
transparency
|
ZF2
|
1.67250
|
4.12
|
0.21
|
39.10
|
55.41
|
5.49
|
90%
|
ZF3
|
1.71720
|
4.46
|
0.24
|
33.88
|
61.05
|
5.07
|
85%
|
ZF6
|
1.75500
|
4.77
|
0.27
|
30.96
|
65.06
|
3.98
|
75%
|
ZF7
|
1.0600
|
5.19
|
0.33
|
27.27
|
70.93
|
1.8
|
70%
|
Lead plate
|
|
11.34
|
99.994
|
|
|
|
|
Brief Introduction:

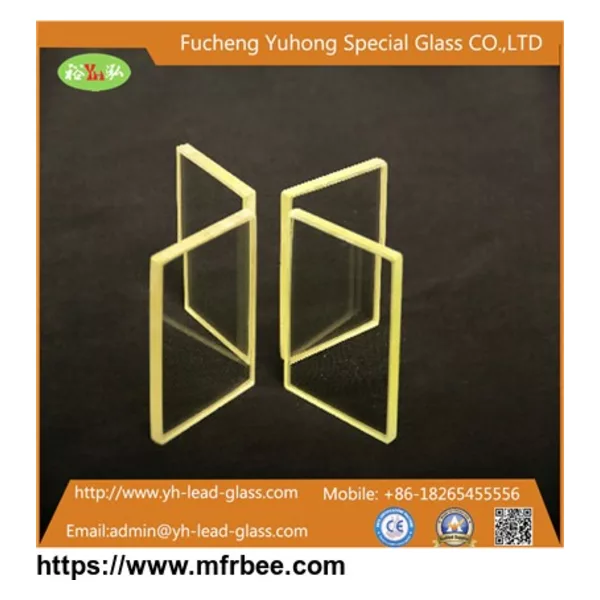

Radiation Protection Products' Lead Glass (X-ray Glass, Radiation Shielding Glass, Leaded Glass) is suitable for installation in screens, windows, walls, and doors. Our Lead Glass (X-ray Glass,
Radiation Shielding Glass, Leaded Glass) allows technicians to view the imaging or radiation therapy procedures. More details on our lead x-ray glass can be found on the submittals page.
Application:
Lead glass has a number of uses, primarily in the medical industry. It provides full radiation protection but is transparent and easy to see through for observation purposes. Radiation Protection
Products x-ray glass delivers superior visual clarity and high light transmission with little to no distortion, even in our thickest available varieties. Our lead glass can be used effectively in
x-ray rooms, radiation therapy rooms, laboratories, and many other applications.
Specification:
We offer lead glass in a variety of standard sizes to meet the needs of nearly any application. See the chart below for our standard x-ray glass sizes. We also offer custom size lead glass up to
a maximum of 3m*1.2m. Quotes for custom size leaded glass are available upon request.
Lead Equivalent:
Lead Glass (X-ray Glass, Radiation Shielding Glass, Leaded Glass) is available in the following equivalencies: 1.6mm, 2.0mm, 2.5mm and 3.2mm. These lead equivalencies are based on 150kV. Lead
x-ray glass with higher lead equivalencies is available upon request.
Radiation-shielding lead glass
we're also the leading supplier of lead glass with different products series in china, and we can offer our products with very competitive price and quality.
the lead glass of our products are divided into ZF2, ZF3,ZF6,ZF7 series. ZF2 and ZF3 series high lead glass is extensively applied as shield in X-ray Diagnosis, spiral CT scanning room vieport
and medical diagnosis. ZF6 and ZF7 series high lead glass is mainly used in nuclear industry such as nuclear powder station and atomic energy application. since our products were launched into
the market with good transparency, high lead equivalency and excellent service, we get a lot trust and favorable comments from clients.
Now besides our main products of lead glass, we also have a full-line of X-ray protective products: X-ray protective door window series( applied in X-ray diagnosis, X-ray Room, CT scanning,
intervene treatment room, Nuclear medical room); Nuclear medical protective series, radiation intervention study protective series, lead sticky series, medical radiation treatment protective
series of ECT-PET; protective series of linear accelerator. Gu 60 and the industrial machine protective series of flaw detection.
