Counter Current Cooler China
==Description of Counter Current Cooler China:
Welcome to buy customized counter current cooler from Jingerui ,which is one of the best Counter Current Cooler ,drum dryer,uniaxial mixer ,biaxial mixer manufacturers and suppliers in China.
==Specification of Counter Current Cooler China:
Trademark: Jingerui
Origin : China
Condition: new
Certificate: CE SGS
Min order: 1
Automatic grade : automatic
Voltage : 380V
==Introduction of Counter Current Cooler China:

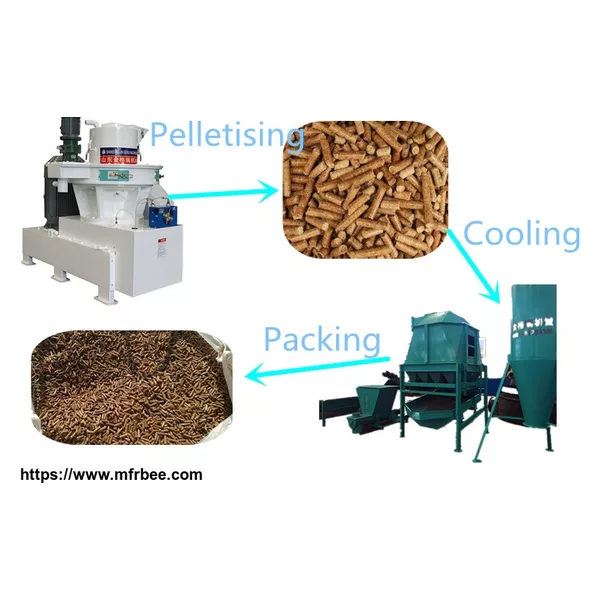

Counter current cooler is a main process in the pellet production line.The wood pellets need to be cooled to the room temperature when the pellets are made from the pellet machine.If don't cool it
,the pellets will not become the granules.
==Technical parameter of counter current cooler China:
Model
|
SKLN1.5
|
SKLN2.5
|
SKLN6
|
SKLN8
|
Output
|
1.2-2
|
2-4T/h
|
5-8T/H
|
8-12T/H
|
(T/H)
|
Cooling volume
|
1.5m³
|
2.5m³
|
6m³
|
8m³
|
(m³)
|
Cooling time min
|
Not less than 10 minutes
|
Temperature of after cooling
|
Room temperature + 3~5 Celsius
|
Power(KW)
|
0.25
|
0.25KW
|
0.37
|
0.37
|
Input volume(m³/h)
|
9000
|
135000m³/h
|
27000m³/h
|
36000m³/h
|
air pressure
|
200mmH20 height
|
Dimension (mm)
|
1556*1616*2505
|
2100*1966*2870
|
3315*2146*3722
|
3335*2636*3957
|
==Principle of Counter current Cooler china:
counter current cooler adopts counter flow theory, cold air goes into cooler from the bottom to the top, hot pellets goes into cooler from the top to the bottom,time goes by, the woodpellets will
pile up at the cooler bottom, cold air will cool pellets at the bottom gradually,in this way will reduce pellet broken situation.
