Vehicle-mounted Sprayer
Product Quick Detail
- FOB Price
- USD $4,500.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Wood box
- Delivery
- 15 Days
Specifications
Vehicle-mounted Sprayer

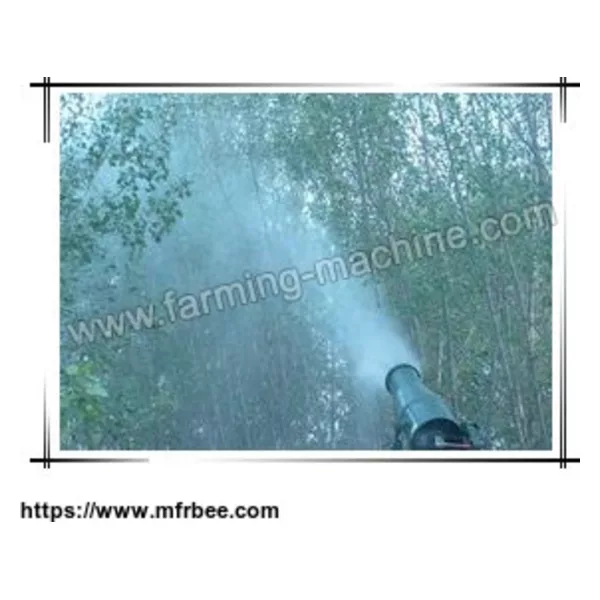

In the sprayer machines, this agriculture & forestry sprayer is a vehicle-mounted one, an air-assisted one and a long-range one, used with moving vehicles, such as lorries, agricultural tricycles, tractor trailers, etc. This machine comes with power source, and its power can be selected. With superfine droplet design, it can save 30%-55% water and pesticide. Easy operation and low cost.
And there are two types of spraying machine used with tractor we can supply for your choice: thetrailed orchard sprayer
 |  |
Vehicle-mounted SprayerParameter
| Model | 3WF-45B | 3WF-50B | 3WF-60B | 3WF-80 |
| Size | 1300*1100*1000mm | 1520*1150*1200mm | 1900*1400*1200mm | / |
| Fan diameter | 450mm | 500mm | 600mm | 800mm |
| Wind pressure | <1800 Pa | <1800 Pa | <2000 Pa | <2000 Pa |
| Wind flow capacity | >200st/min | >200st/min | >240st/min | >240st/min |
| Horizontal range | >22m | >35m | >50m | >70m |
| Rotating speed of fan | 2800rpm | 2800rpm | 2800rpm | 2800rpm |
| Air-tube elevation range | -10-70° | -10-70° | 0-10° | 0-10° |
| Spraying flux | 15-35L/min | 15-35L/min | 25-50L/min | 35-70L/min |
| Pump pressure | >4MPa | >4MPa | >4MPa | >4MPa |
| Power | 15HP | 20HP | 35HP | 75HP |
| Model | 3WG-50B | 3WG-60B | 3WG-70B |
| Fan diameter | 500mm | 600mm | 700mm |
| Wind pressure | <2000 Pa | <2000Pa | <2000Pa |
| Wind flow capacity | >240st/min | >240st/min | >240st/min |
| Horizontal range | >35m | >45m | >55m |
| Vertical range | >25m | >35m | >45m |
| Rotating speed of fan | 2800rpm | 2800rpm | 2800rpm |
| Water flow capacity of pump | 25-50L/min | 25-50L/min | 25-50L/min |
| Pump pressure | >4MPa | >4MPa | >4MPa |
| Diesel engine | 15Hp | 35Hp | 45Hp |
Tips: The 3WF group has the engine set on the side of the machine; the 3WG group has the engine set under the machine.
3WG
 3WF |
