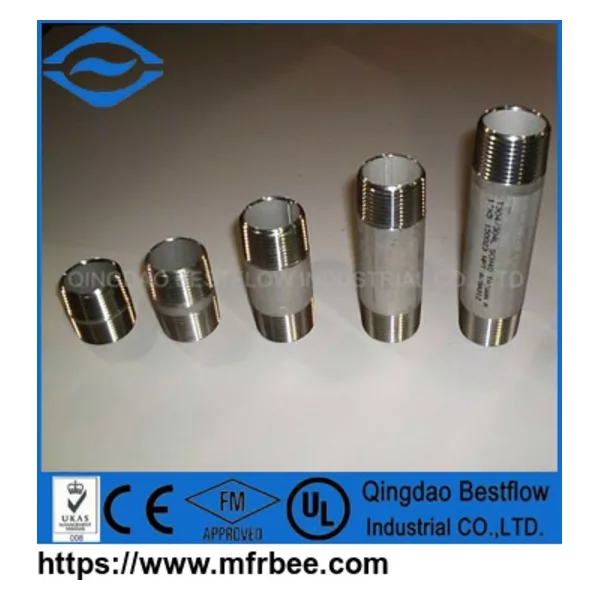

steel pipe nipple

1. AMERICAN STANDARD : ASTM A733



PIPE: ASTM A53 / ASTM A106 / ASTM A333



THREADS: ANSI B1.20.1

SCH:40.80.160.XXS



2. BRITISH STANDARD : BS EN10241



PIPE: BS1387, MEDIUM & HEAVY



THREADS: ISO 7/1

3. DIN STANDARD : DIN2982



PIPE: DIN2440, MEDIUM & HEAVY



THREADS: DIN2999

O.D. : 1/8”-6”



Length: 3/4”-24”; 19mm-500mm; Or as per customer’s request



Thickness: SCH10 SCH20 SCH40 SCH80 SCH160; CLASS A, CLASS B, CLASS C



Surface: Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black



Threads: DIN, BS, NPT, Metric, BSPT, BSP, NPS (ISO7/1, DIN 2999, ANSI B1.20.1)



Dimension: BS EN10241, ASTM A733, DIN2982



Type: Close Nipple, Short Nipple, Shoulder nipple, Long Nipple, Running Nipple, Barrel Nipple etc



Usage: Convey Water, Oil, Gas, Steam and so on



Mechanical Properties:

Tensile Strength ≥ 320N/mm2



Yield Strength≥ 195N/mm2



Elongation ≥20%



Hydraulic Test:



Working Pressure: Max 1.5MPa



Test Pressure: Max 2.5MPa



Temperature: -20 ~ 120 °c



Production Capacity: 60000 MT per Year



Lead Time: Within 30 Days if enquiry not more than 10x20' Container
