General performance | ||
Set up time | ≤5Mins (from unlock the box to establish the satellite link) | |
Stow time | ≤3Mins | |
Azimuth range | +90°~+270° | |
Elevation range | Face south:25°~ +90° (Factory preset) | |
Face north:4°~ +90° (Factory preset) | ||
Polarization range | ±95° | |

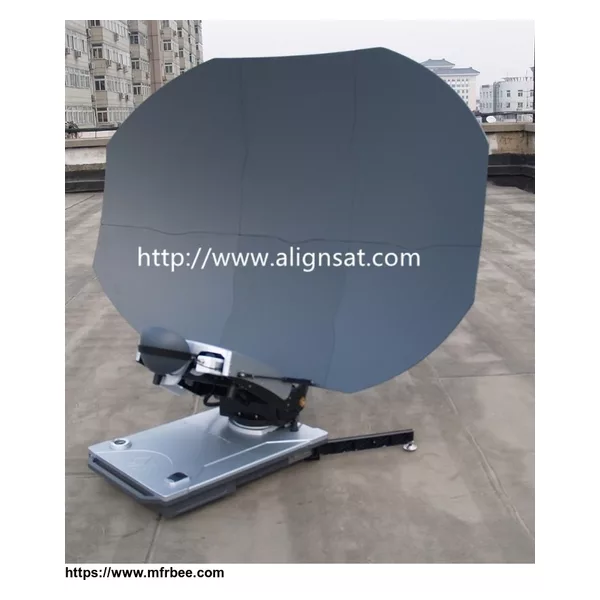

Style of the antenna | Modified double offset Gregorian antenna | |
Polarization mode | Linear polarization | |
Size of the reflector | 1250 × 1100 mm(the whole) | |
Equivalent | 1.2m | |
Antenna weight | ≤26.98Kg The host; 22.7kg,The reflectors; 4.28kg(include LNB,not include BUC)) | |
Power | 110 or 220VAC±10% (well connect with the ground) | |
Power consumed | ≤68W(Peak value),not include BUC | |
Reflector material | Carbon fiber | |
Reflector parts | 6 pieces with curve edge include 5 detachable side-pieces and 1 main piece. | |
Environmental conditions | ||
Operating wind speed | Steady wind≤50km/h(need balance weight);Gust≤65km/h(Strengthen balance weight) | |
Operating temperature | -25℃~+55℃ | |
Storage temperature | -55℃~+85℃ | |
Altitude | ≤5000m | |
Protection grade | IP55 | |
Relative humidity | 0%~100% | |
Electrical performance | ||
Name | Receive | Transmission |
Operating Freq. band | 10.95~12.75 GHz | 13.750~14.50 GHz |
Gain | ≥41.6+20log(f/12.5) dBi | ≥42.8+20log(f/14.25) dBi |
The first sidelobe | ≤-14dB | ≤-14dB |
Cross polarization | ≥35dB(on axi);≥31dB(offset 1dB) | |
VSWR | 1.25:1 | 1.25:1 |
Note:
1. The real price depends on the detailed parameter you request.
2. When you send us the inquiry, please describe your detailed request, such as exact frequency band for C, ku, ka, X, S or other bands, Linear or Circular Pol., 2 or 4 port, manual or motorized drive. With these detailed information, we can offer you an accurate quotation at an early time. Thanks for your cooperation and understanding.
