Chain link fence protects and decorates garden and sports yard

Chain Link Fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control.

Weaving and Features: Uniform opening, flat surface, simple weaving and practical use. Easy and flexible for installation and connecting. Traditional Chain-Link Fencing is the ideal choice for a smart, secure, boundary fences for industry. We produce industrial chain link fences with hot-dipped galvanized, PVC coated and stainless steel wires. The most popular is galvanized chain link fence, which has good resistance to water and atmospheric corrosion. However, PVC coated chain link durability is better than galvanized fence.

Chain Link Fence Edge Types
There are three edge types to choose: knuckle - knuckle, twist - twist or knuckle - twist. Chain link fence with twist will usually add security.
Knuckling - This term is used to describe the type of selvage obtained by interlocking adjacent pairs of wire ends and then bending the wire ends back into a closed loop. Usually knuckle is standard unless otherwise stated.
Twisting - This term is used to describe the type of selvage obtained by twisting adjacent pairs of wire ends together in a closed helix of 1-1/2 machine turns, which is equivalent to three full twists, and cuffing the wire ends at a sharp angle to provide sharp points. The wire ends beyond the twist shall be at least 1/4 inch (6.4mm) long.

Green PVC chain link fence with Twist edge
Chain Link Fence with Knuckle edge

Chain Link Fence Specifications:
Chain Link Fence Specifications:Wire diameter 1.2mm - 5.0mm,
Mesh size 20mm -100mm
Roll width 0.5m, 1.0m, 1.25m, 1.5m, 1.8m, 2.0m, 2.5m
Roll length 10m-50m.

Which fence should I buy, galvanized or PVC coated chain-link fencing?
If you want chain link fence stood 30-40 years, then you should buy only the fence with a wire diameter of 3mm - 4 mm. If you want to have a more attractive appearance should buy the PVC coated fence. Just need protecting against corrosion, you can choose fence with galvanized. If you plan to put fence into hostile environments: near the sea or in the acid factory area. Please buy PVC coated chain link fence. Because sea salt air and acid atmosphere very quickly corrode zinc surface, but they cannot cope with the polymer coating.

What is the best chain link fence for me?
Our galvanized wire and PVC coated chain link fence has the best durability and resistant to corrosion. We have this fencing in various wire diameters for different application. It is listed as below:
For chicken poultry, Gal. Wire 1.5 mm. PVC coated 1.0mm, chain wire dia. 2.5mm
For garden and tennis courts, Gal. Wire 2.0 mm. PVC coated 1.5 mm, chain wire dia. 3.5mm
For road fence, Gal. Wire 2.5 mm. PVC coated 1.3mm, chain wire dia. 3.8mm
For sea side and oil field, Gal. Wire 3.5 mm. PVC coated 1.5mm, chain wire dia. 5.0 mm

How to Order a Chain Link Fence? When order chain link fence, you should keep some catalog in mind in order to get the right products. Below are the catalog and parameters.

1. Materials: Galvanized, PVC (Black, Dark green, Brown, Gray), Stainless Steel, Aluminum Chain Link Fences.
2. Wire Diameters: Common Wire Gauges are 9, 10, 11.
3. Fence Height: Common Height: 3, 4, 5, 6, 7, 8, 10, 12 ft.
4. When installing the chain link fence, the fence accessories are necessary. The order should include the numbers of them, such as, corner posts, end posts, brace, clamps, Rail.
5. Packages for fencing and accessories. We usually transport the fencing in rolls and accessories in decking.

Chain link PVC coated fence complete set with good packing system

1. MAIN POST, with description/include:
   Pipe 2 inch × 3000 mm LG; Sch.40; Straight; c/w Cap
   Include anchored bar 10mm
   Heavy galvanized with galvanized thickness of 300gr/m²
2. BEAM POST, with description/include:
   Pipe 1-1/2 inch × 3000 mm LG; Sch.40; Straight
   Include rail end welded galvanized, 5mm thickness
   Heavy galvanized with galvanized thickness of 300gr/m²
3. CHAIN LINK GALVANIZED + PVC GRAY
   Wire diameter: 3.0mm / 4.0mm
   Mesh: 50mm × 50mm (knuckle - knuckled)
   Dimension / roll: 1.8m × 20 meter/roll
4. BARBED WIRE GALVANIZED + PVC GRAY
   Core Wire Diameter:3.0mm / 4.0mm
   Barbed Wire Dia.: 3.0mm / 4.0mm
   Dimension / roll: 50 meters / roll
5. SINGLE LONG WIRE GALVANIZED + PVC GRAY
   Wire diameter: 3.0mm / 4.0mm
   Dimension / roll : 1000 meters / roll
6. Rail End band/Ring fitment
   Steel plate 5mm thickness, Bolt,washer and nut 5/16" dia - 1-1/4" LG
   Heavy galvanized with galvanized thickness of 300gr/m²

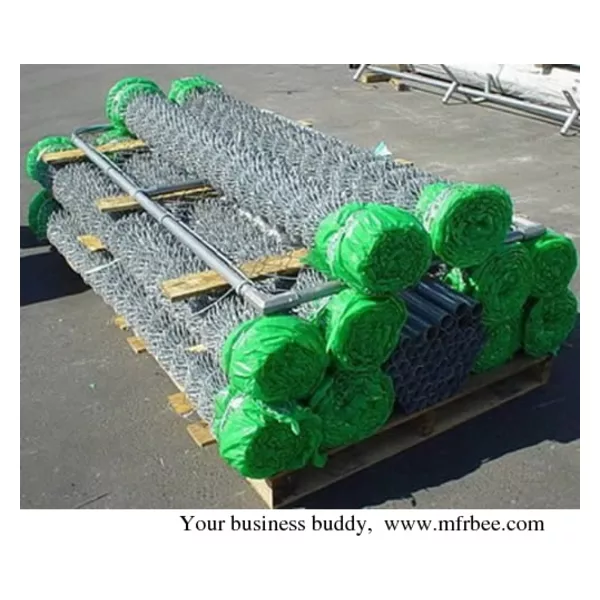

Galvanized Chain Link Fence and fence post packed on the pallet
