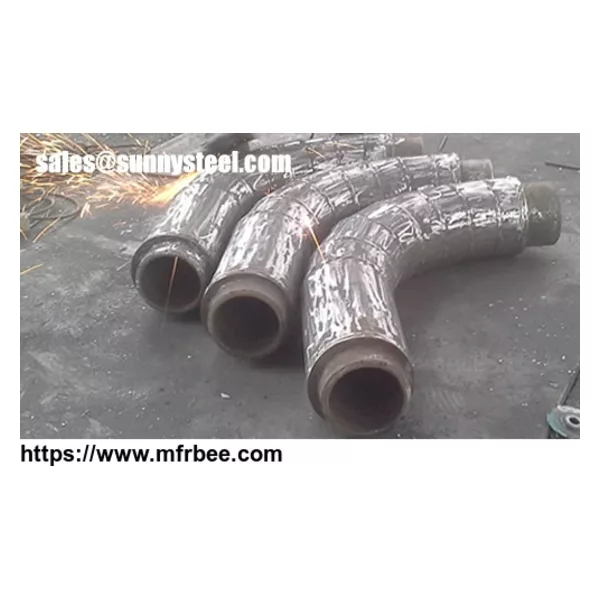

Bimetal Clad Pipe Bend

Minimum Order: 1
Place Of Origin: China

Packaging: in wooden boxes

Delivery: 15 Days

Manufacturing Process of Bimetal Clad Pipe Bend:

Bimetal Clad Pipe Bend are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique. Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Bends and other profile sections can be cladded in whole and this process has changed the traditional practice to fabricate bend and other profile sections by drawing polyline without changing flow pattern of material inside piping,greatly reducing conveyance resistance of material.

Advantages Compared with Traditional Wear Resistant

Alloy Cast Iron, Alloy Cast Steel, General Clad Steel Pipe and Cast Stone Pipe:

1. Good wear-resistance, giving full play to wear-resistance of high chromium cast iron.

2. Withstanding high pressure:

Bimetal cladding pipe and bend can be used for any pressure rating. Close bonding of outer and lining by adopting special process make cladding interlayer molten-joint to ensure reliable operation.

3. Good mechanical impact and thermal impact resistance property.

4. Convenient in connection for installation:

Bimetal cladding pipe and bend can be cut and welded as you like.

Physical Properties of Bimetal Clad Pipe Bend:

Flexure Strength	Tensile Strength	Elongation	Cross Section Stretch Ratio	Impact Toughness	Hardness of Wearable Layer	Hydrostatic Testing Pressure
MN/㎡	MN/㎡	%	%	J/c㎡	HRC	Mpa
>610	>700	5	5.1	>15	>38	5.6-12.9

Application Fields

Paper Making: For conveying pulp.
Shipping: For clearing shipping channels and sediment transportation.
Metal Mines: For conveying tailings, concentrates and backfill minerals.
Coal Preparation Plants: For conveying dense media, mixture and coal slurry.
Power Plants: For deashing, deslagging, coal dropping, powder transportation
