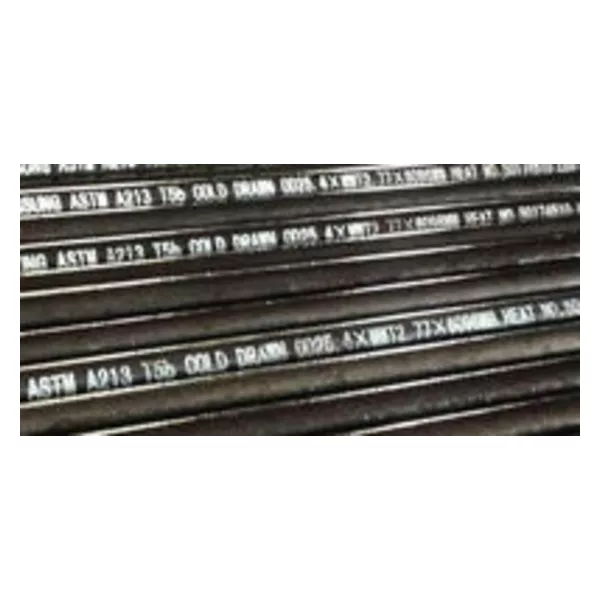

ASTM A213 T5b Seamless alloy tube

ASME SA213 T5b, ASTM A213,ASTM A213 T5, SA213 T5b, Alloy steel pipe, ASTM A213 T5b Alloy steel Seamless Tube

ASTM A213 T5b Standard covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes.

ASTM A213 T5b Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H.

These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. ASTM A213 T5b tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified. Grade TP347HFG shall be cold finished. Heat treatment shall be done separately and in addition to heating for hot forming. The ferritic alloy and ferritic stainless steels shall be reheated. On the other hand, austenitic stainless steel tubes shall be furnished in the heat-treated condition. Alternatively, immediately after hot forming, while the temperature of the tubes is not less than the minimum solution temperature, tubes may be individually quenched in water or rapidly cooled by other means. Tension test, hardness test, flattening test, and flaring test shall be done to each tube. Also, each tube shall be subjected to the nondestructive electric test or hydrostatic test.

Mechanical properties for ASTM A213 T5b Low Alloy Steel

Other standard specifications include the categories of A209 seamless carbon-molybdenum alloy-steel boiler and superheater tubes; A210 seamless medium-carbon steel boiler and superheater tubes and A213 seamless ferritic and austenitic steel boiler, superheater and heat-exchanger tubes. Piping wall thicknesses range from 1/2 inch to 5 inches. A213 grades also have the letter H or M assigned, which changes the composition and specifications for that series.

This abstract is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.

Chemical Composition(%) for ASTM A213 T5b Low Alloy Steel

UNS Designation	K41545
Carbon	0.15
Manganese	0.30–0.60
Phosphorus	0.025
Sulfur	0.025
Silicon	1.00-2.00
Nickel	…
Chromium	4.00-6.00
Molybdenum	0.45-0.65
Vanadium	…
Boron	…
Niobium	…
Nitrogen	…
Aluminum	…
Tungsten	…
Other Elements	…

Mechanical properties for ASTM A213 T5b Low Alloy Steel

Tensile strength(min)	415Mpa
Yield strength(min)	205Mpa
Elongation	30%
Hardness, HB	179 max

Permitted tolerance for OD

OD	Plus tolerance(+)	Minus tolerance (-)
10.29—48.3	0.4	0.4
<48.3—-≤114.3	0.79	0.79
<114.3—≤219.1	1.59	0.79
<219.1—≤323.9	2.38	0.79
<323.9	±1%

ASTM A213 T5b Standard Scope

1.1 This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T91, TP304, etc. These steels are listed in Tables 1 and 2.
1.2 Grades containing the letter, H, in their designation, have requirements different from those of similar grades not containing the letter, H. These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements.
1.3 The tubing sizes and thicknesses usually furnished to this specification are 1/8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm], inclusive, in minimum wall thickness or, if specified in the order, average wall thickness. Tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. The inch-pound units shall apply unless the “M” designation of this specification is specified in the order.
TABLE 1 Chemical Composition Limits, %A, for Low Alloy SteelA Maximum, unless range or minimum is indicated. Where ellipses (…) appear in this table, there is no requirement, and analysis for the element need not be determined or reported.

B It is permissible to order T2 and T12 with a sulfur content of 0.045 max. See 16.3.

C Alternatively, in lieu of this ratio minimum, the material shall have a minimum hardness of 275 HV in the hardened condition, defined as after austenitizing and cooling to room temperature but prior to tempering. Hardness testing shall be performed at mid-thickness of the product. Hardness test frequency shall be two samples of product per heat treatment lot and the hardness testing results shall be reported on the material test report.

Referenced Documents (purchase separately)

Other ASTM Standards

• A262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels
• A941 Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
• A1016/A1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless Steel Tubes
• E112 Test Methods for Determining Average Grain Size
