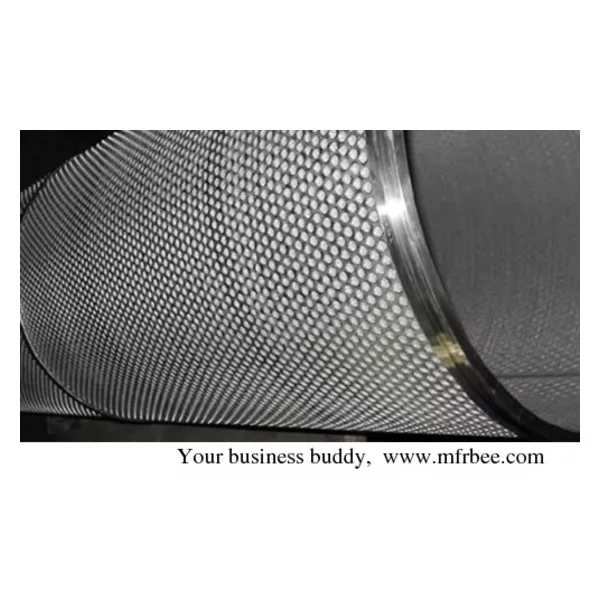

Sintered Wire Mesh Laminates

Our Sintered Wire Mesh Laminates made of perforated metal (perforated metal as support layer make the sintered filter easy backwash), stainless steel square wire mesh and plain dutch sintered wire cloth are the fine materials for filtration, usually 5 - 7 layers. Sintered mesh laminates can be welded to filter elements as tube, cylinders, disc and conical shapes. Different mesh size and thickness are available according to different filter purpose.

Specification

Common Materials: Monel 400 alloy, AISI 304, 316, AISI 316L

Filter accuracy from1μm to 200μm;

Max size:1200×1500;

Standard size: 600×1200mm, 500×1000mm, 1000×1000mm, 1200×1200mm, 1200×1500mm;
