Vgate iCar3 ELM327 WiFi Icar 3 Mini Wireless Scanner

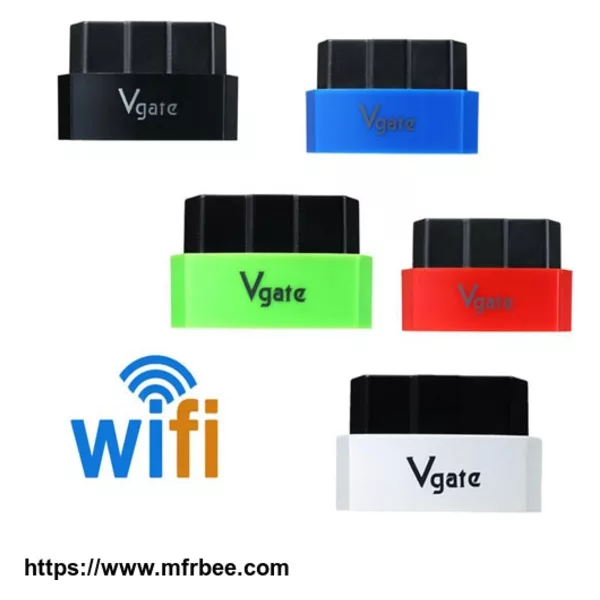

Vgate iCar3 ELM327 WiFi NO AUTO WAKE UP. Icar 3 Mini Wireless Scanner is a high-quality automotive scanning tool. iCar3 wifi obd2 diagnostic scanner with 5 colors.

---

Vgate iCar3 ELM327 WiFi Icar 3 Mini Wireless Scanner
The Vgate® iCar 3 WiFi scanner is an engine performance and diagnostics tool for both automotive enthusiasts and professionals. Paired with your Apple or Android smartphone or tablet, this scanner allows you to easily scan and clear engine codes, view and save real-time engine and performance data and much more.
Newly released in 2015, this model features an advanced Wi-Fi connection using Wireless-N (802.11n) to deliver enough speed, range and reliability to ensure the best connection to your Smartphone, Tablet or PC. It also features an integrated smart auto sleep function that puts it into sleep mode after 30 minutes, allowing you leave it plugged into your vehicle at all times.
iCar3 ELM327 WiFi Highlights:
Wireless-N 802.11n connection to deliver enough speed, range and reliability for the best connection
Auto Sleep Mode function with Power Switch
Uses fast and reliable ARM chips
Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
Connect to an Apple iPhone/iPad or Android device using one of the many apps available in the app store or a Wi-Fi enabled computer
View real-time vehicle data, graphs and performance parameters while you're driving
Find and fix problems before they happen
Pays for itself with one use
Compatible with all OBDII compliant vehicles
Connects wireless via Wi-Fi up to 200m (no annoying cables)
Compatible with SAE J1850 PWM and SAE J1850 VPW protocols found on many Ford and GM vehicles (these protocols are NOT supported on cheaper bluetooth scanners)
ICar3 ELM327 WiFi Vehicle Coverage:
Works on all OBD II Vehicles (1996+ in USA) and EOBD vehicles (Petrol cars from 2001+ and diesel cars from 2003/2004 in Europe)
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant
With the appropriate applications, you can:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display code descriptions with over 3000 universal code definitions in the database
Clear diagnostic trouble codes and turn off check engine lights
Real-Time or Record Data Logging
Export data in a variety of formats
Display Real-Time sensor data, including:
Engine RPM
Coolant Temperature
Oil Pressure
Throttle Position
Calculated Load Value
Fuel System Status
Vehicle Speed
Short and Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen Sensor Voltages/Associated Short Term Fuel Trims
Fuel System Status
Fuel Pressure
+ More
The Vgate iCar 3 Supports All OBDII Protocols
SAE J1850 PWM (Found on many For Ford vehicles)
SAE J1850 VPW (Found on many For GM vehicles)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
SAE J1939 CAN(29bit ID, 250*Kbaud)
USER1 CAN(11*bit ID,125*Kbaud)
USER2 CAN(11*bit ID, 50*kbaud)
Icar 3 Mini Specifications:
Wireless Rate: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Channel: 1-14
Frequency Range: 2.4 - 2.4835G
Sending Power: 15~18DBM
Interface: UART, GPIO
Antenna Type: External
Wi-Fi Range: 100~200m (depending on physical factors)
Icar 3 Mini package Included:
Vgate® iCar 3 ELM327 WiFi Scanner
Retail Box
Product Manual
CD
